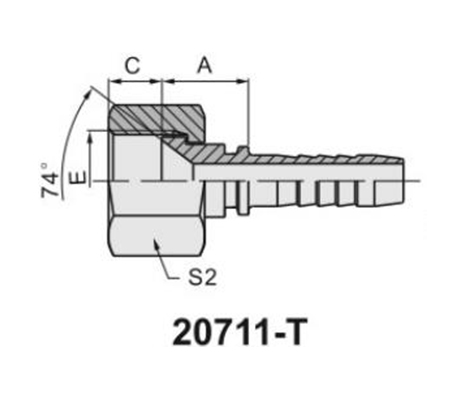

PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S2 |
||
|
20711-10-02 |
M10X1 |
4 |
02 |
14 |
7.5 |
14 |
|
20711-12-03C |
M12X1.25 |
5 |
03 |
14 |
9 |
17 |
|
20711-12-03 |
M12X1.5 |
5 |
03 |
14 |
10 |
17 |
|
20711-12-04 |
M12X1.5 |
6 |
04 |
14.5 |
10 |
17 |
|
20711-14-04 |
M14X1.5 |
6 |
04 |
15.5 |
8.5 |
19 |
|
20711-14-05 |
M14X1.5 |
8 |
05 |
15.5 |
8.5 |
19 |
|
20711-14-06 |
M14X1.5 |
10 |
06 |
15.5 |
8.5 |
19 |
|
20711-16-04 |
M16X1.5 |
6 |
04 |
16.5 |
8 |
22 |
|
20711-16-05 |
M16X1.5 |
8 |
05 |
16.5 |
8 |
22 |
|
20711-16-06 |
M16X1.5 |
10 |
06 |
16 |
8 |
22 |
|
20711-18-05T |
M18X1.5 |
8 |
05 |
16 |
8 |
22 |
|
20711-18-06 |
M18X1.5 |
10 |
06 |
17.5 |
10 |
24 |
|
20711-20-06T |
M20X1.5 |
10 |
06 |
16 |
10 |
24 |
|
20711-20-08 |
M20X1.5 |
12 |
08 |
18.5 |
10 |
27 |
|
20711-22-06T |
M22X1.5 |
10 |
06 |
16 |
10 |
27 |
|
20711-22-08 |
M22X1.5 |
12 |
08 |
18.5 |
10 |
27 |
|
20711-22-10 |
M22X1.5 |
16 |
10 |
19.5 |
10 |
27 |
|
20711-24-08T |
M24X1.5 |
12 |
08 |
16.5 |
11 |
30 |
|
20711-27-08T |
M27X1.5 |
12 |
08 |
18.5 |
11 |
32 |
|
20711-27-10T |
M27X1.5 |
16 |
10 |
19.5 |
11 |
32 |
|
20711-27-12 |
M27X1.5 |
20 |
12 |
21.5 |
11 |
32 |
|
20711-30-10T |
M30X1.5 |
16 |
10 |
18.5 |
11 |
36 |
|
20711-30-12 |
M30X1.5 |
20 |
12 |
21.5 |
11 |
36 |
|
20711-33-10T |
M33X2 |
16 |
10 |
20 |
13 |
41 |
|
20711-33-12T |
M33X2 |
20 |
12 |
20 |
13 |
41 |
|
20711-33-14 |
M33X2 |
22 |
14 |
21.5 |
13 |
41 |
|
20711-36-12T |
M36X2 |
20 |
12 |
20 |
14 |
41 |
|
20711-36-14T |
M36X2 |
22 |
14 |
20 |
14 |
41 |
|
20711-36-16 |
M36X2 |
25 |
16 |
23 |
14 |
41 |
|
20711-39-16T |
M39X2 |
25 |
16 |
23.5 |
14 |
46 |
|
20711-42-16T |
M42X2 |
25 |
16 |
23.5 |
15 |
50 |
|
20711-42-20 |
M42X2 |
32 |
20 |
26 |
15 |
50 |
|
20711-45-20T |
M45X2 |
32 |
20 |
25 |
15 |
55 |
|
20711-52-27T |
M52X2 |
40 |
24 |
25 |
17 |
60 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20712-xx-xx. |
||||||
