SWVE-R-KDS BSPP(G)male stud banjo elbow-BSPP male stud with KDS soft seal ring-YUYAO SHUNDA VALVES & FITTINGS CO., LTD.

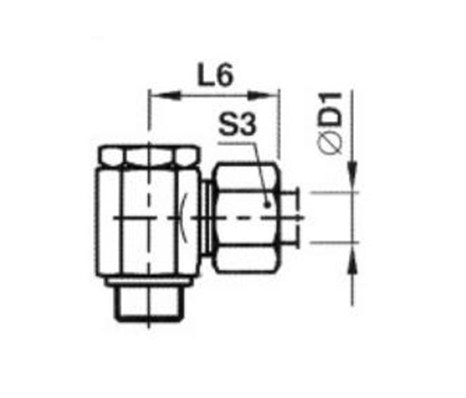

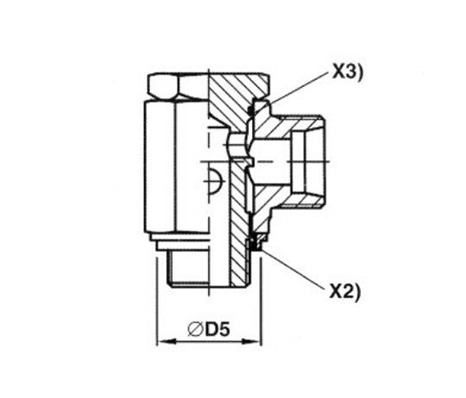

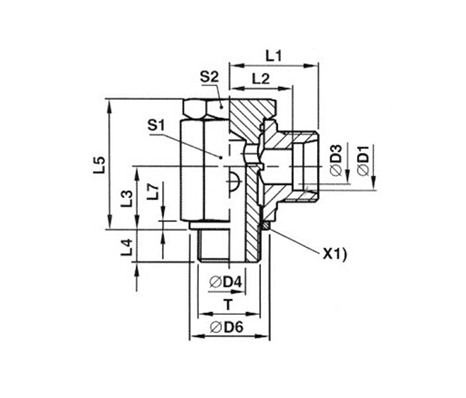

X1)Metal seal ring DKA

X2)Soft seal ring KDS(for ports with Small spot face. ISO 1179)

X3)O—ring OR

SERIES	PART NO.	Dimensions															PN/bar		Weight
SERIES	PART NO.	D1	T	D3	D4	D6 DKA	L1	L2	L3	L4	L5	L6	L7	S1	S2	S3		71	g
LL	SWVE04LLMOMD	04	G 1/8 A	3.0	5.0		15.5	11.5	10.0	6	21.0	21	2.5	14	14	10	63		28
	SWVE06LLMOMD	06	G 1/8 A	4.5	5.0	15	15.5	10.0	10.0	6	21,5	22	2.5	14	14	12	63		28
	SWVE08LLMOMD	08	G 1/8 A	6.0	5.0	15	16.5	11.0	10.0	6	21.0	23	2.5	14	14	14	63		30
L	SWVE06LMOMD	06	G 1/8 A	4.5	5.0	15	17.5	10.5	10.0	6	21.0	25	2.5	14	14	14	160		31
	SWVE08LMOMD	08	G 1/4 A	6.0	6.5	17	20.0	13.0	13.0	9	27.0	28	3.0	19	19	17	160		65
	SWVE10LMOMD	10	G 1/4 A	8.0	6.5	19	21.0	14.0	13.0	9	27.0	29	3.0	19	19	19	160		66
	SWVE12LMOMD	12	G3/8A	10.0	8.5	22	22.5	15.5	15.0	9	32.0	30	3.0	22	22	22	100		102
	SWVE15LMOMD	15	G 1/2 A	12.0	11.0	24	26.0	19.0	18.0	9	37.5	34	3.0	27	27	27	100		171
	SWVE18LMOMD	18	G 1/2 A	15.0	13.0	27	28.0	20.5	21.5	11	44.5	37	4.5	30	27	32	100		249
	SWVE22LMOMD	22	G 3/4A	19.0	18.0	32	33.0	25.5	24.0	13	49.0	42	3.5	36	32	36	100		349
	SWVE28LMOMD	28	G 1A	24.0	22.0	40	39.5	32.0	30.5	14	66.5	49	3.5	50	46	41	100
	SWVE35LMOMD	35	G 11/4 A	30.0	29.0	50	46.5	36.0	35.5	16	76.0	58	3.5	60	55	50	100
	SWVE42LMOMD	42	G 11/2 A	36.0	35.0	56	51.5	40.5	40.5	18	86.0	63	3.5	70	60	60	100
S	SWVE06SMOMD	06	G 1/4 A	4.0	6.5	17	22.0	15.0	13.0	9	27.0	30	3.0	19	19	17	160		69
	SWVE08SMOMD	08	G 1/4 A	5.0	6.5	19	22.0	15.0	13.0	9	27.0	30	3.0	19	19	19	160		73
	SWVE10SMOMD	10	G 3/8A	7.0	8.5	22	23.5	16.0	15.0	9	32.0	32	3.0	22	22	22	100		108
	SWVE12SMOMD	12	G 3/8A	8.0	9.0	24	24.5	17.0	18.0	9	37.0	33	3.0	24	24	24	100		147
	SWVE14SMOMD	14	G 1/2 A	10.0	11.0		28.0	20.0	18.0	11	37.5	38	4.5	27	27	27	100		177
	SWVE16SMOMD	16	G 1/2 A	12.0	13.0	27	30.0	21.5	21.5	11	44.5	40	4.5	30	27	30	100		249
	SWVE20SMOMD	20	G 3/4A	16.0	18.0	33	35.0	24.5	24.0	13	49.0	46	3.5	36	32	36	100		359
	SWVE25SMOMD	25	G 1A	20.0	22.0	40	43.5	31.5	30.5	14	66.5	56	3.5	50	46	46	100
	SWVE30SMOMD	30	G 11/4 A	25.0	29.0	50	50.5	37.0	35.5	16	76.0	64	3.5	60	55	50	100
	SWVE38SMOMD	38	G 11/2 A	32.0	35.0	56	57.5	41.5	40.5	18	86.0	72	3.5	70	60	60	100

1 ) Delivery without nut and cutting ring. Information on ordering complete fittings or alternative sealing materials see “Ordering code" on page C3.

2 ) Pressure shown means the item deliverable.
Piease add the suffixes below according to the material and surface required:

material

Suffix for surface and material

Example

Standard seal material (no suffix needed)

Steel,

zinc plated, Cr(VI)-free

SWVE16SMOMD

NBR
