SERIES |
PART NO. |

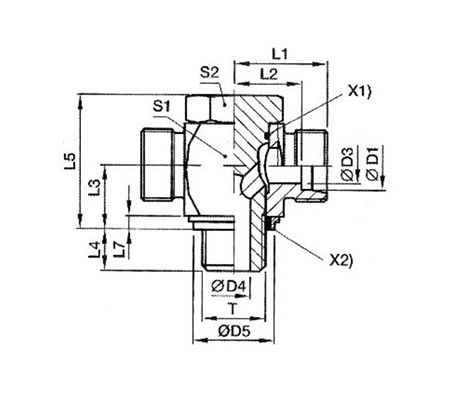

Dimensions |
PN/bar |
Weight |
||||||||||||||||
|
D1 |
T |
D3 |
D4 |
D5 KDS |

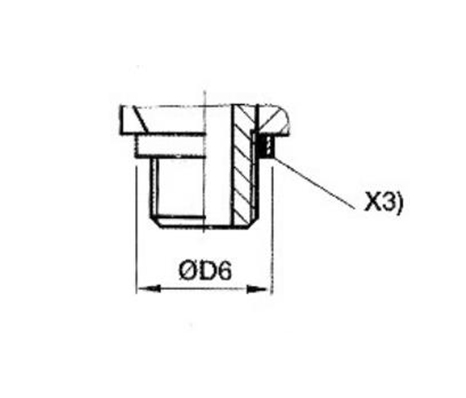

D6 KD |
L1 |
L2 |
L3 |
L4 |
L5 |

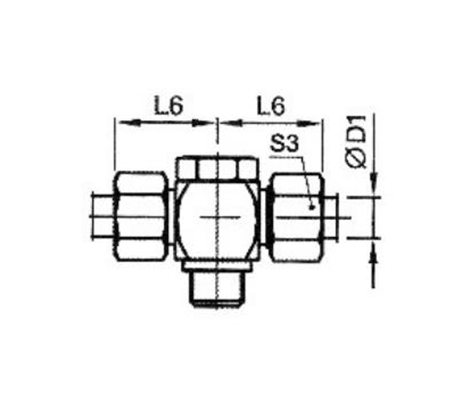

L6 |
L7 |
S1 |
S2 |
S3 |
|
71 |
g |
||
|
L
|
TH06LMKDSOMD |
06 |
M 10X1 |
4 |
4.5 |
14.9 |
17.0 |
19.0 |
12.0 |
10.5 |
8 |
24.0 |
27 |
2.5 |
17 |
17 |
14 |
315 |
315 |
54 |
|
TH08LMKDSOMD |
08 |
M 12X1.5 |
6 |
6.0 |
17.0 |
22.0 |
21.5 |
14.5 |
14.0 |
12 |
30.0 |
29 |
3.0 |
22 |
19 |
17 |
315 |
315 |
97 |
|
|
TH10LMKDSOMD |
10 |
M 14X1.5 |
8 |
6.0 |
18.9 |
22.5 |
22.5 |
15.5 |
14.0 |
12 |
30.0 |
30 |
3.0 |
22 |
19 |
19 |
315 |
315 |
104 |
|
|
TH12LMKDS0MD |
12 |
M 16X1.5 |
10 |
7.5 |
21.9 |
27.0 |
25.0 |
18.0 |
16.5 |
12 |
36.0 |
33 |
3.0 |
27 |
24 |
22 |
315 |
315 |
180 |
|
|
TH15LMKDSOMD |
15 |
M 18X1.5 |
11 |
9.0 |
23.9 |
29.0 |
27.5 |
21.5 |
18.5 |
12 |
39.5 |
37 |
3.0 |
30 |
30 |
27 |
315 |
315 |
244 |
|
|
TH18LMKDS0MD |
18 |
M 22X1.5 |
15 |
12.0 |
26.9 |
32.0 |
28.5 |
21.0 |
21.5 |
14 |
45.0 |
37 |
4.5 |
32 |
30 |
32 |
315 |
315 |
327 |
|
|
TH22LMKDSOMD |
22 |
M 26X1.5 |
19 |
17.0 |
31.9 |
41.0 |
35.0 |
27.5 |
24.0 |
16 |
53.0 |
44 |
3.5 |
41 |
36 |
36 |
160 |
160 |
573 |
|
|
TH28LMKDSOMD |
28 |
M 33X2 |
24 |
21.0 |
39.9 |
46.0 |
39.5 |
32.0 |
30.5 |
18 |
66.0 |
49 |
3.5 |
50 |
46 |
41 |
160 |
160 |
1017 |
|
|
TH35LMKDSOMD |
35 |
M 42X2 |
30 |
27.0 |
49.9 |
57.0 |
46.5 |
36.0 |
35.5 |
20 |
76.0 |
58 |
3.5 |
60 |
55 |
50 |
160 |
160 |
1512 |
|
|
TH42LMKDSOMD |
42 |
M 48X2 |
36 |
34.0 |
55.9 |
64.0 |
51.5 |
40.5 |
40.5 |
22 |
87.0 |
63 |
3.5 |
70 |
60 |
60 |
160 |
160 |
2217 |
|
|
S
|
TH06LMKDSOMD |
06 |
M 12X1.5 |
4 |
6.0 |
17.0 |
22.0 |
23.5 |
16.5 |
14.0 |
12 |
30.0 |
31 |
3.0 |
22 |
19 |
17 |
400 |
400 |
104 |
|
TH08LMKDSOMD |
08 |
M 14X1.5 |
5 |
6.0 |
18.9 |
22.5 |
23.5 |
16.5 |
14.0 |
12 |
30.0 |
31 |
3.0 |
22 |
19 |
19 |
400 |
400 |
110 |
|
|
TH10LMKDSOMD |
10 |
M 16X1.5 |
7 |
7.5 |
21.9 |
27.0 |
26.0 |
18.5 |
16.5 |
12 |
36.5 |
35 |
3.0 |
27 |
24 |
22 |
400 |
400 |
186 |
|
|
TH12LMKDS0MD |
12 |
M 18X1.5 |
8 |
9.0 |
23.9 |
29.0 |
27.5 |
20.0 |
18.5 |
12 |
39.5 |
36 |
3.0 |
27 |
27 |
24 |
400 |
400 |
246 |
|
|
TH14LMKDSOMD |
14 |
M 20X1.5 |
10 |
10.0 |
|
32.0 |
30.5 |
22.5 |
20.0 |
14 |
43.5 |
40 |
3.0 |
32 |
30 |
27 |
|
400 |
322 |
|
|
TH16LMKDS0MD |
16 |
M 22X1.5 |
12 |
12.0 |
26.9 |
32.0 |
30.5 |
22.0 |
21.5 |
14 |
45.0 |
40 |
4.5 |
32 |
30 |
30 |
315 |
315 |
327 |
|
|
TH20LMKDSOMD |
20 |
M 27X2 |
16 |
16.0 |
32.9 |
41.0 |
37.0 |
26.5 |
24.0 |
16 |
53.0 |
48 |
3.5 |
41 |
36 |
36 |
315 |
315 |
598 |
|
|
TH25LMKDSOMD |
25 |
M 33X2 |
20 |
21.0 |
39.9 |
46.0 |
43.5 |
31.5 |
30.5 |
19 |
66.0 |
56 |
3.5 |
50 |
46 |
46 |
250 |
250 |
1055 |
|
|
TH30LMKDSOMD |
30 |
M 42X2 |
25 |
27.0 |
49.9 |
57.0 |
50.5 |
37.0 |
35.5 |
20 |
76.0 |
64 |
3.5 |
60 |
55 |
50 |
160 |
160 |
1572 |
|
|
TH38LMKDSOMD |
38 |
M 48X2 |
32 |
34.0 |
55.9 |
64.0 |
57.5 |
41.5 |
40.5 |
22 |
87.0 |
72 |
3.5 |
70 |
60 |
60 |
160 |
160 |
2317 |
|
Piease add the suffixes below according to the material and surface required:
|
material |
Suffix for surface and material |
Example |
Standard seal material (no suffix needed) |
|
Steel, zinc plated, Cr(VI)-free |
|
WH16SMKDSOMD |
NBR |
|
Stainless steel |
71 |
WH16SMKDOMD71 |
VIP/PTFE |
