TH-R-KDS High pressure banjo tee-Male BSPP(G)thread with soft seal rin-YUYAO SHUNDA VALVES & FITTINGS CO., LTD.

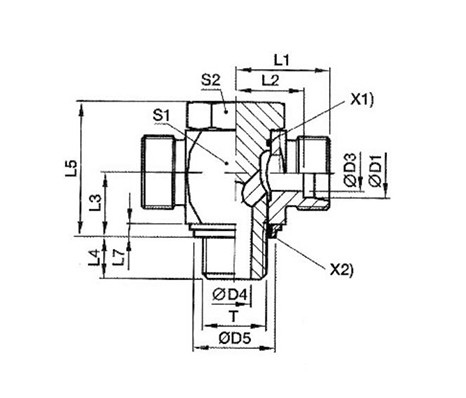

X1 )O—ring OR

X2) Sealing ring KDS(for ports with small spot face,ISO 1197)

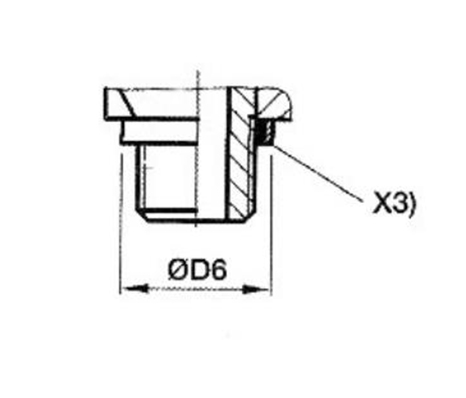

X3)Sealing ring KDS(or ports with wide spot face,ISO 1197)

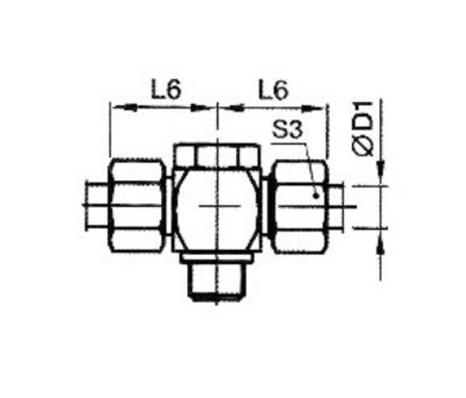

SERIES	PART NO.	Dimensions																PN/bar		Weight
SERIES	PART NO.	D1	T	D3	D4	D5 KDS	D6 KD	L1	L2	L3	L4	L5	L6	L7	S1	S2	S3		71	g
L	TH06LMKDSOMD	06	G1/8A	4	4.5	14.9	17.0	19.0	12.0	10.5	8	24.0	27	2.5	17	17	14	315	315	53
	TH08LMKDSOMD	08	G1/4A	6	6.0	18.9	22.0	21.5	14.5	14.0	12	30.0	29	3.0	22	19	17	315	315	101
	TH10LMKDSOMD	10	G1/4A	8	6.0	18.9	22.0	22.5	15.5	14.0	12	30.0	30	3.0	22	19	19	315	315	102
	TH12LMKDSOMD	12	G3/8A	10	7.5	21.9	27.0	25.0	18.0	16.5	12	36.0	33	3.0	27	24	22	315	315	181
	TH15LMKDSOMD	15	G1/2A	12	11.0	26.9	32.0	28.5	21.5	21.5	14	45.0	37	4.5	30	30	27	315	315	312
	TH18LMKDSOMD	18	G1/2A	15	11.0	26.9	32.0	28.5	21.0	21.5	14	45.0	37	4.5	32	30	32	315	315	319
	TH22LMKDSOMD	22	G3/4A	19	17.0	32.9	41.0	35.0	27.5	24.0	16	53.0	44	3.5	41	36	36	160	160	578
	TH28LMKDSOMD	28	G1A	24	21.0	39.9	46.0	39.5	32.0	30.5	18	66.0	49	3.5	50	46	41	160	160	1035
	TH35LMKDSOMD	35	G11/4A	30	27.0	49.9	57.0	46.5	36.0	35.5	20	76.0	58	3.5	60	55	50	160	160	1499
	TH42LMKDSOMD	42	G11/2A	36	34.0	55.9	64.0	51.5	40.5	40.5	22	87.0	63	3.5	70	60	60	160	160	2196
S	TH06LMKDSOMD	06	G1/4A	4	6.0	18.9	22.0	23.5	16.5	14.0	12	30.0	31	3.0	22	19	17	400	400	107
	TH08LMKDSOMD	08	G1/4A	5	6.0	18.9	22.0	23.5	16.5	14.0	12	30.0	31	3.0	22	19	19	400	400	107
	TH10LMKDSOMD	10	G3/8A	7	7.5	21.9	27.0	26.0	18.5	16.5	12	36.0	35	3.0	27	24	22	400	400	188
	TH12LMKDSOMD	12	G3/8A	8	7.5	21.9	27.0	26.0	18.5	16.5	12	36.0	35	3.0	27	24	24	400	400	190
	TH14LMKDSOMD	14	G1/2A	10	11.0	26.9	32.0	30.5	22.5	21.5	15	45.0	40	4.5	32	30	27	400	400	320
	TH16LMKDSOMD	16	G1/2A	12	11.0	26.9	32.0	30.5	22.0	21.5	14	45.0	40	4.5	32	30	30	315	315	324
	TH20LMKDSOMD	20	G3/4A	16	17.0	32.9	41.0	37.0	26.5	24.0	16	53.0	48	3.5	41	36	36	315	315	588
	TH25LMKDSOMD	25	G1A	20	21.0	39.9	46.0	43.5	31.5	30.5	18	66.0	56	3.5	50	46	46	250	250	1073
	TH30LMKDSOMD	30	G11/4A	25	27.0	49.9	57.0	50.5	37.0	35.5	20	76.0	64	3.5	60	55	50	160	160	1559
	TH38LMKDSOMD	38	G11/2A	32	34.0	55.9	64.0	57.5	41.5	40.5	22	87.0	72	3.5	70	60	60	160	160	2296

1 ) Delivery without nut and cutting ring. Information on ordering complete fittings or alternative sealing materials see “Ordering code” on page C3.

2 ) Pressure shown means the item deliverable.
Piease add the suffixes below according to the material and surface required:

material

Suffix for surface and material

Example

Standard seal material (no suffix needed)

Steel,

zinc plated, Cr(VI)-free

WH16SMKDSOMD

NBR

Stainless

steel

WH16SMKDOMD71

VIP/PTFE

Stainless Steel only with sealing ring KD availablelReplace KDS by KD in the order code.
