WH-M-KDS High pressure banjo elbow-Male metric thread with soft seal ring-YUYAO SHUNDA VALVES & FITTINGS CO., LTD.

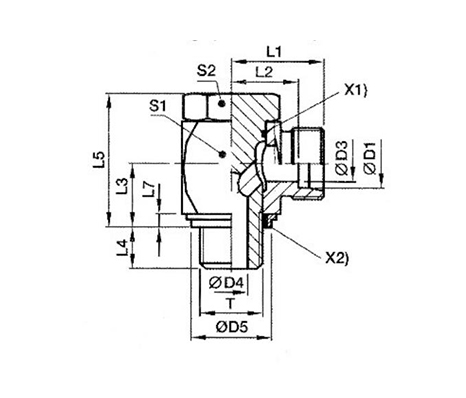

X1)O—ring OR

X2)Sealing ring KDS(for ports with small spot face,ISO 9974)

X3)Sealing ring KDS(or ports with wide spot face,ISO 9974）

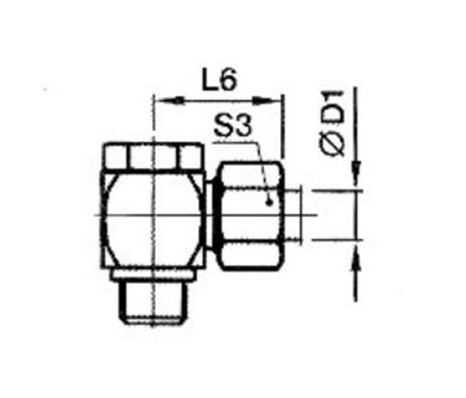

SERIES	PART NO.	Dimensions																PN/bar		Weight
SERIES	PART NO.	D1	T	D3	D4	D5 KDS	D6 KD	L1	L2	L3	L4	L5	L6	L7	S1	S2	S3		71	g
L	WH06LMKDSOMD	06	M 10X1	4	4.5	14.9	17.0	19.0	12.0	10.5	8	24.0	27	2.5	17	17	14	315	315	54
	WH08LMKDSOMD	08	M 12X1.5	6	6.0	17.0	22.0	21.5	14.5	14.0	12	30.0	29	3.0	22	19	17	315	315	97
	WH10LMKDSOMD	10	M 14X1.5	8	6.0	18.9	22.5	22.5	15.5	14.0	12	30.0	30	3.0	22	19	19	315	315	104
	WH12LMKDSOMD	12	M 16X1.5	10	7.5	21.9	27.0	25.0	18.0	16.5	12	36.0	33	3.0	27	24	22	315	315	180
	WH15LMKDSOMD	15	M 18X1.5	11	9.0	23.9	29.0	27.5	21.5	18.5	12	39.5	37	3.0	30	30	27	315	315	244
	WH18LMKDSOMD	18	M 22X1.5	15	12.0	26.9	32.0	28.5	21.0	21.5	14	45.0	37	4.5	32	30	32	315	315	327
	WH22LMKDSOMD	22	M 26X1.5	19	17.0	31.9	41.0	35.0	27.5	24.0	16	53.0	44	3.5	41	36	36	160	160	573
	WH28LMKDSOMD	28	M 33X2	24	21.0	39.9	46.0	39.5	32.0	30.5	18	66.0	49	3.5	50	46	41	160	160	1017
	WH35LMKDSOMD	35	M 42X2	30	27.0	49.9	57.0	46.5	36.0	35.5	20	76.0	58	3.5	60	55	50	160	160	1512
	WH42LMKDSOMD	42	M 48X2	36	34.0	55.9	64.0	51.5	40.5	40.5	22	87.0	63	3.5	70	60	60	160	160	2217
S	WH06LMKDSOMD	06	M 12X1.5	4	6.0	17.0	22.0	23.5	16.5	14.0	12	30.0	31	3.0	22	19	17	400	400	104
	WH08LMKDSOMD	08	M 14X1.5	5	6.0	18.9	22.5	23.5	16.5	14.0	12	30.0	31	3.0	22	19	19	400	400	110
	WH10LMKDSOMD	10	M 16X1.5	7	7.5	21.9	27.0	26.0	18.5	16.5	12	36.5	35	3.0	27	24	22	400	400	186
	WH12LMKDSOMD	12	M 18X1.5	8	9.0	23.9	29.0	27.5	20.0	18.5	12	39.5	36	3.0	27	27	24	400	400	246
	WH14LMKDSOMD	14	M 20X1.5	10	10.0		32.0	30.5	22.5	20.0	14	43.5	40	3.0	32	30	27		400	322
	WH16LMKDSOMD	16	M 22X1.5	12	12.0	26.9	32.0	30.5	22.0	21.5	14	45.0	40	4.5	32	30	30	315	315	327
	WH20LMKDSOMD	20	M 27X2	16	16.0	32.9	41.0	37.0	26.5	24.0	16	53.0	48	3.5	41	36	36	315	315	598
	WH25LMKDSOMD	25	M 33X2	20	21.0	39.9	46.0	43.5	31.5	30.5	19	66.0	56	3.5	50	46	46	250	250	1055
	WH30LMKDSOMD	30	M 42X2	25	27.0	49.9	57.0	50.5	37.0	35.5	20	76.0	64	3.5	60	55	50	160	160	1572
	WH38LMKDSOMD	38	M 48X2	32	34.0	55.9	64.0	57.5	41.5	40.5	22	87.0	72	3.5	70	60	60	160	160	2317

1 ) Delivery without nut and cutting ring. Information on ordering complete fittings or alternative sealing materials see “Ordering code" on page C3.

2 ) Pressure shown means the item deliverable.

Piease add the suffixes below according to the material and surface required:

material

Suffix for surface and material

Example

Standard seal material (no suffix needed)

Steel,

zinc plated, Cr(VI)-free

WH16SMKDSOMD

NBR

Stainless

steel

WH16SMKDOMD71

VIP/PTFE

Stainless Steel only with sealing ring KD availablelReplace KPS by KD in the order code.
