WH-R-KDS High pressure banjo elbow-Male BSPP(G)thread with soft seal ring-YUYAO SHUNDA VALVES & FITTINGS CO., LTD.

X1)0—ring OR

X2)Sealing ring KDS(for ports with small spot face,ISO 1197)

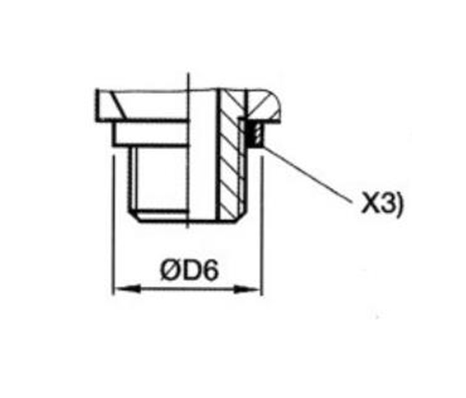

X3)Sealing ring KDS(or ports with wide spot face, IS0 1197)

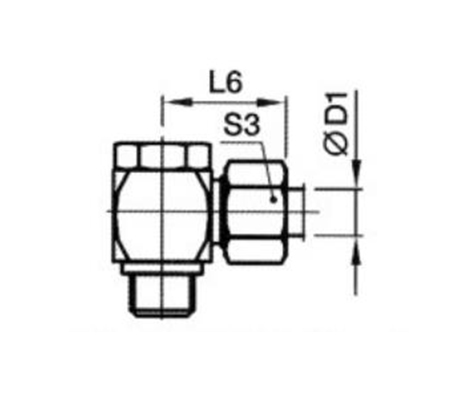

SERIES	PART NO.	Dimensions																PN/bar		Weight
SERIES	PART NO.	D1	T	D3	D4	D5 KDS	D6 KD	L1	L2	L3	L4	L5	L6	L7	S1	S2	S3		71	g
L	WH06LMKDSOMD	06	G1/8A	4	4.5	14.9	17.0	19.0	12.0	10.5	8	24.0	27	2.5	17	17	14	315	315	53
	WH08LMKDSOMD	08	G1/4A	6	6.0	18.9	22.0	21.5	14.5	14.0	12	30.0	29	3.0	22	19	17	315	315	101
	WH10LMKDSOMD	10	G1/4A	8	6.0	18.9	22.0	22.5	15.5	14.0	12	30.0	30	3.0	22	19	19	315	315	102
	WH12LMKDSOMD	12	G3/8A	10	7.5	21.9	27.0	25.0	18.0	16.5	12	36.0	33	3.0	27	24	22	315	315	181
	WH15LMKDSOMD	15	G1/2A	12	11.0	26.9	32.0	28.5	21.5	21.5	14	45.0	37	4.5	30	30	27	315	315	312
	WH18LMKDSOMD	18	G1/2A	15	11.0	26.9	32.0	28.5	21.0	21.5	14	45.0	37	4.5	32	30	32	315	315	319
	WH22LMKDSOMD	22	G3/4A	19	17.0	32.9	41.0	35.0	27.5	24.0	16	53.0	44	3.5	41	36	36	160	160	578
	WH28LMKDSOMD	28	G1A	24	21.0	39.9	46.0	39.5	32.0	30.5	18	66.0	49	3.5	50	46	41	160	160	1035
	WH35LMKDSOMD	35	G11/4A	30	27.0	49.9	57.0	46.5	36.0	35.5	20	76.0	58	3.5	60	55	50	160	160	1499
	WH42LMKDSOMD	42	G11/2A	36	34.0	55.9	64.0	51.5	40.5	40.5	22	87.0	63	3.5	70	60	60	160	160	2196
S	WH06LMKDSOMD	06	G1/4A	4	6.0	18.9	22.0	23.5	16.5	14.0	12	30.0	31	3.0	22	19	17	400	400	107
	WH08LMKDSOMD	08	G1/4A	5	6.0	18.9	22.0	23.5	16.5	14.0	12	30.0	31	3.0	22	19	19	400	400	107
	WH10LMKDSOMD	10	G3/8A	7	7.5	21.9	27.0	26.0	18.5	16.5	12	36.0	35	3.0	27	24	22	400	400	188
	WH12LMKDSOMD	12	G3/8A	8	7.5	21.9	27.0	26.0	18.5	16.5	12	36.0	35	3.0	27	24	24	400	400	190
	WH14LMKDSOMD	14	G1/2A	10	11.0	26.9	32.0	30.5	22.5	21.5	15	45.0	40	4.5	32	30	27	400	400	320
	WH16LMKDSOMD	16	G1/2A	12	11.0	26.9	32.0	30.5	22.0	21.5	14	45.0	40	4.5	32	30	30	315	315	324
	WH20LMKDSOMD	20	G3/4A	16	17.0	32.9	41.0	37.0	26.5	24.0	16	53.0	48	3.5	41	36	36	315	315	588
	WH25LMKDSOMD	25	G1A	20	21.0	39.9	46.0	43.5	31.5	30.5	18	66.0	56	3.5	50	46	46	250	250	1073
	WH30LMKDSOMD	30	G11/4A	25	27.0	49.9	57.0	50.5	37.0	35.5	20	76.0	64	3.5	60	55	50	160	160	1559
	WH38LMKDSOMD	38	G11/2A	32	34.0	55.9	64.0	57.5	41.5	40.5	22	87.0	72	3.5	70	60	60	160	160	2296

1 ) Delivery witnout nut and cutting ring, information on ordering complete fittings or alternative sealing materials see “Ordering code” on page C3.

2 ) Pressure shown means the item deliverable.
Piease add the suffixes below according to the material and surfa

material

Suffix for surface and material

Example

Standard seal material (no suffix needed)

Steel,

zinc plated, Cr(VI)-free

WH16SMKDSOMD

NBR

Stainless

steel

WH16SMKDOMD71

VIP/PTFE

Stainless Steel only with sealing ring KD availablelReplace KDS by KD in the order code.
