90° ELBOW BSP FEMALE ISO 1179

Home / Specification / Hydraulic Adapter / BSP Thread 60° Cone Fittings / 90° ELBOW BSP FEMALE ISO 1179

How Can We Help You?

+86-13805809210 Contact Us

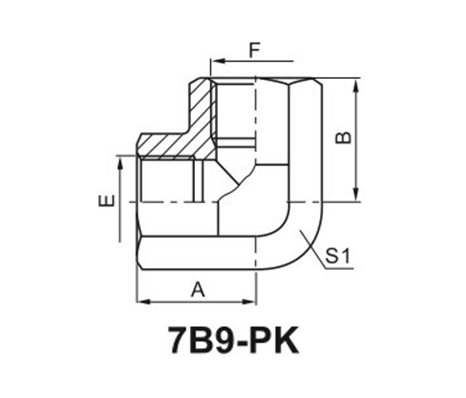

90° ELBOW BSP FEMALE ISO 1179

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD



    DIMENSIONS

    E

    F





    A

    B

    S1





    7B9-02PK

    G1/8"X28

    G1/8"X28





    20

    20

    16





    7B9-04PK

    G1/4"X19

    G1/4"X19





    22.5

    22.5

    19





    7B9-06PK

    G3/8"X19

    G3/8"X19





    26

    26

    24





    7B9-08PK

    G1/2"X14

    G1/2"X14





    31

    31

    27





    7B9-12PK

    G3/4"X14

    G3/4"X14





    34

    34

    33





    7B9-16PK

    G1"X11

    G1"X11





    42

    42

    41





    7B9-20PK

    G1.1/4"X11

    G1.1/4"X11





    48

    48

    50





    7B9-24PK

    G1.1/2"X11

    G1.1/2"X11





    53

    53

    60





    7B9-32PK

    G2"X11

    G2"X11





    62

    62

    70
