BSP FEMALE ISO 1179 TEE

+86-13967892895 Contact Us
  • Description
  • Additional Information

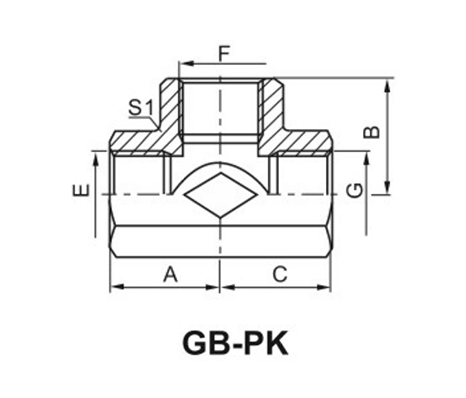

  • PART NO.

    THREAD



    DIMENSIONS

    E

    F

    G





    A

    B

    C

    S1



    GB-02PK

    G1/8"X28

    G1/8"X28

    G1/8"X28





    20

    20

    20

    16



    GB-04PK

    G1/4"X19

    G1/4"X19

    G1/4"X19





    22.5

    22.5

    22.5

    19



    GB-06PK

    G3/8"X19

    G3/8"X19

    G3/8"X19





    26

    26

    26

    24



    GB-08PK

    G1/2"X14

    G1/2"X14

    G1/2"X14





    31

    31

    31

    27



    GB-12PK

    G3/4"X14

    G3/4"X14

    G3/4"X14





    34

    34

    34

    33



    GB-16PK

    G1"X11

    G1"X11

    G1"X11





    42

    42

    42

    41



    GB-20PK

    G1.1/4"X11

    G1.1/4"X11

    G1.1/4"X11





    48

    48

    48

    50



    GB-24PK

    G1.1/2"X11

    G1.1/2"X11

    G1.1/2"X11





    53

    53

    53

    60



    GB-32PK

    G2"X11

    G2"X11

    G2"X11





    62

    62

    62

    70
