BSP MALE CAPTIVE SEAL HOLLOW HEX PLUGE end

+86-13967892895 Contact Us
  • Description
  • Additional Information

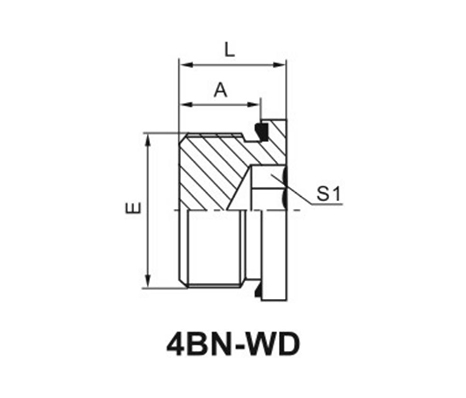

  • PART NO.

    THREAD

    CAPTIVE

    DIMENSIONS

    E



    E end



    A

    L

    S1





    4BN-02WD

    G1/8"X28



    WD-B02



    8

    12.2

    5





    4BN-04WD

    G1/4"X19



    WD-B04



    12

    17.2

    6





    4BN-06WD

    G3/8"X19



    WD-B06



    12

    17.2

    8





    4BN-08WD

    G1/2"X14



    WD-B08



    14

    19.2

    10





    4BN-12WD

    G3/4"X14



    WD-B12



    16

    21.2

    12





    4BN-16WD

    G1"X11



    WD-B16



    16

    22.8

    17





    4BN-20WD

    G1.1/4"X11



    WD-B20



    20

    26.8

    22





    4BN-24WD

    G1.1/2"X11



    WD-B24



    22

    28.8

    24
