PART NO. |
THREAD |
O-RING |

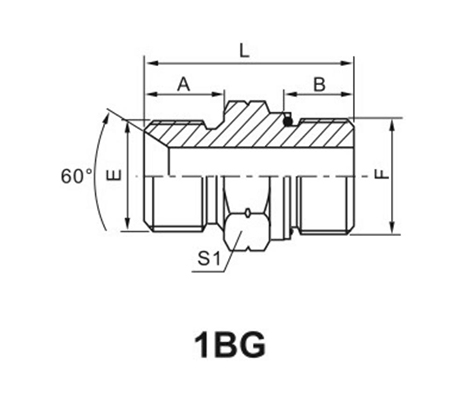

DIMENSIONS |
||||||
|
E |
F |
|
F end |
A |
B |
L |
S1 |
|
|
|
1BG-02 |
G1/8”X28 |
G1/8”X28 |
|
O011 |
10 |
9.5 |
27 |
14 |
|
|
1BG-04 |
G1/4"X19 |
G1/4”X19 |
|
O111 |
12 |
11 |
31 |
19 |
|
|
1BG-04-06 |
G1/4”X19 |
G3/8"X19 |
|
O113 |
12 |
11.5 |
32 |
22 |
|
|
1BG-06 |
G3/8"X19 |
G3/8”X19 |
|
O113 |
13.5 |
11.5 |
33 |
22 |
|
|
1BG-06-04 |
G3/8"X19 |
G1/4”X19 |
|
O111 |
13.5 |
11 |
32.5 |
22 |
|
|
1BG-06-08 |
G3/8"X19 |
G1/2"X14 |
|
O115 |
13.5 |
14 |
38.5 |
27 |
|
|
1BG-08 |
G1/2"X14 |
G1/2”X14 |
|
O115 |
16 |
14 |
41 |
27 |
|
|
1BG-08-06 |
G1/2"X14 |
G3/8”X19 |
|
O113 |
16 |
11.5 |
36 |
27 |
|
|
1BG-08-12 |
G1/2”X14 |
G3/4”X14 |
|
O119 |
16 |
15.5 |
45.5 |
32 |
|
|
1BG-10-08 |
G5/8"X14 |
G1/2"X14 |
|
O115 |
17.5 |
14 |
44.5 |
30 |
|
|
1BG-12 |
G3/4"X14 |
G3/4"X14 |
|
O119 |
18.5 |
15.5 |
46 |
32 |
|
|
1BG-12-08 |
G3/4”X14 |
G1/2”X14 |
|
O115 |
18.5 |
14 |
45.5 |
32 |
|
|
1BG-16-08 |
G1"X11 |
G1/2"X14 |
|
O115 |
20.5 |
14 |
50.5 |
41 |
|
|
1BG-16 |
G1"X11 |
G1"X11 |
|
O217 |
20.5 |
18 |
53 |
41 |
|
|
1BG-16-12 |
G1"X11 |
G3/4”X14 |
|
O119 |
20.5 |
15.5 |
52 |
41 |
|
|
1BG-20 |
G1.1/4”X11 |
G1.1/4”X11 |
|
O222 |
20.5 |
20 |
58.5 |
50 |
|
|
1BG-24 |
G1.1/2"X11 |
G1.1/2”X11 |
|
O224 |
23 |
21.5 |
62.5 |
55 |
|
|
Note:F end is connected with DIN 3852 port. |
|||||||||
