PART NO. |
THREAD |
〇一RING |

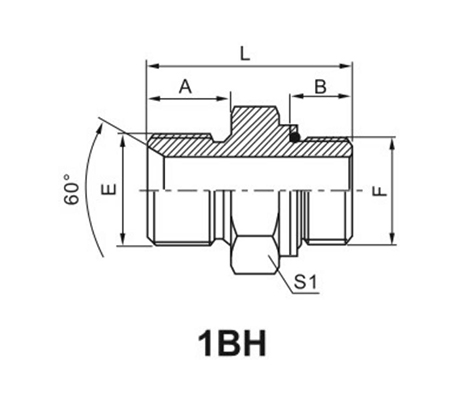

DIMENSIONS |
||||||
|
E |
F |
|
F end |
A |
B |
S1 |
L |
|
|
|
1BH-02-10 |
G1/8"X28 |
M10X1 |
|
O08.1X1.6 |
10 |
8.5 |
14 |
25 |
|
|
1BH-02-12 |
G1/8"X28 |
M12X1.5 |
|
O09.3X2.4 |
10 |
11 |
17 |
28 |
|
|
1BH-04-12 |
G1/4"X19 |
M12X1.5 |
|
O09.3X2.4 |
12 |
11 |
19 |
30 |
|
|
1BH-04-14 |
G1/4"X19 |
M14X1.5 |
|
O11.3X2.4 |
12 |
11 |
19 |
31.5 |
|
|
1BH-04-16 |
G1/4"X19 |
M16X1.5 |
|
O13.3X2.4 |
12 |
11.5 |
22 |
31.5 |
|
|
1BH-06-14 |
G3/8"X19 |
M14X1.5 |
|
O11.3X2.4 |
13.5 |
11 |
22 |
35 |
|
|
1BH-06-16 |
G3/8"X19 |
M16X1.5 |
|
O13.3X2.4 |
13.5 |
11.5 |
22 |
33 |
|
|
1BH-06-18 |
G3/8"X19 |
M18X1.5 |
|
O15.3X2.4 |
13.5 |
12.5 |
24 |
36.5 |
|
|
1BH-08-18 |
G1/2"X14 |
M18X1.5 |
|
O15.3X2.4 |
16 |
12.5 |
27 |
41 |
|
|
1BH-08-22 |
G1/2"X14 |
M22X1.5 |
|
O19.3X2.4 |
16 |
13 |
27 |
41.5 |
|
|
1BH-10-22 |
G5/8"X14 |
M22X1.5 |
|
O19.3X2.4 |
17.5 |
13 |
30 |
43 |
|
|
1BH-12-16 |
G3/4"X14 |
M16X1.5 |
|
O13.3X2.4 |
18.5 |
11.5 |
32 |
43.5 |
|
|
1BH-12-22 |
G3/4"X14 |
M22X1.5 |
|
O19.3X2.4 |
18.5 |
13 |
32 |
45 |
|
|
1BH-12-27 |
G3/4"X14 |
M27X2 |
|
O23.5X3.0 |
18.5 |
16 |
32 |
45.5 |
|
|
1BH-16-27 |
G1"X11 |
M27X2 |
|
O23.5X3.0 |
20.5 |
16 |
41 |
49 |
|
|
1BH-16-33 |
G1"X11 |
M33X2 |
|
O29.5X3.0 |
20.5 |
16 |
41 |
49.5 |
|
|
1BH-20-42 |
G1.1/4"X11 |
M42X2 |
|
O38.5X3.0 |
20.5 |
16 |
50 |
51.5 |
|
|
1BH-24-48 |
G1.1/2"X11 |
M48X2 |
|
O44.5X3.0 |
23 |
17.5 |
55 |
55.5 |
|
|
Note:fit for ISO 9974-1 port or ISO 6149-1 port when useless of retaining ring. |
|||||||||
