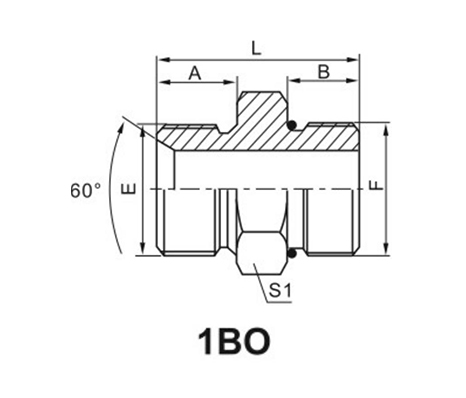

BSP MALE DOUBLE USE FOR 60° SEAT OR BONDED SEAL/ SAE O-RING BOSS L-SERIES ISO 11926-3

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD

    O-RING

    DIMENSIONS

    E

    F



    F end

    A

    B

    L

    S1



    1 BO-04

    G1/4"X19

    7/16"X20



    O904

    12

    9.1

    29.5

    19



    1 BO-04-05

    G1/4"X19

    1/2"X20



    O905

    12

    9.1

    29.5

    19



    1 BO-04-06

    G1/4"X19

    9/16"X18



    O906

    12

    9.9

    32

    19



    1 BO-04-08

    G1/4"X19

    3/4"X16



    O908

    12

    11.1

    31

    22



    1 BO-06

    G3/8"X19

    9/16"X18



    O906

    13.5

    9.9

    33.5

    22



    1 BO-06-04

    G3/8"X19

    7/16"X20



    O904

    13.5

    9.1

    33

    22



    1 BO-06-08

    G3/8"X19

    3/4"X16



    O908

    13.5

    11.1

    36

    24



    1 BO-06-10

    G3/8"X19

    7/8"X14



    O910

    13.5

    12.7

    39.5

    27



    1 BO-08

    G1/2"X14

    3/4"X16



    O908

    16

    11.1

    38

    27



    1 BO-08-06

    G1/2"X14

    9/16"X18



    O906

    16

    9.9

    36

    27



    1 BO-08-10

    G1/2"X14

    7/8"X14



    O910

    16

    12.7

    42

    27



    1 BO-08-12

    G1/2"X14

    1.1/16"X12



    O912

    16

    15.1

    42.5

    36



    1 BO-10

    G5/8"X14

    7/8"X14



    O910

    17.5

    12.7

    43.5

    30



    1 BO-10-08

    G5/8"X14

    3/4"X16



    O908

    17.5

    11.1

    41.5

    30



    1 BO-10-12

    G5/8"X14

    1.1/16"X12



    O912

    17.5

    15.1

    47

    34



    1 BO-12

    G3/4"X14

    1.1/16"X12



    O912

    18.5

    15.1

    48

    34



    1 BO-12-08

    G3/4"X14

    3/4"X16



    O908

    18.5

    11.1

    40.5

    32



    1 BO-12-10

    G3/4"X14

    7/8"X14



    O910

    18.5

    12.7

    45.5

    32



    1 BO-12-14

    G3/4"X14

    1.3/16"X12



    O914

    18.5

    15.1

    48

    38



    1 BO-12-16

    G3/4"X14

    1.5/16"X12



    O916

    18.5

    15.1

    50.7

    41



    1 BO-16

    G1"X11

    1.5/16"X12



    O916

    20.5

    15.1

    52.6

    41



    1 BO-16-10

    G1"X11

    7/8"X14



    O910

    20.5

    12.7

    49.5

    41



    1 BO-16-12

    G1"X11

    1.1/16"X12



    O912

    20.5

    15.1

    52

    41



    1 BO-16-14

    G1"X11

    1.3/16"X12



    O914

    20.5

    15.1

    52

    41



    1 BO-16-20

    G1"X11

    1.5/8"X12



    O920

    20.5

    15.1

    54.7

    50



    1 BO-20

    G1.1/4"X11

    1.5/8"X12



    O920

    20.5

    15.1

    54.7

    50



    1 BO-20-16

    G1.1/4"X11

    1.5/16"X12



    O916

    20.5

    15.1

    54.7

    50



    1 BO-24

    G1.1/2"X11

    1.7/8"X12



    O924

    23

    15.1

    57

    55
