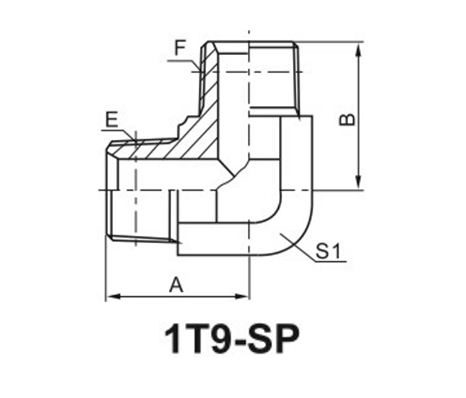

PART NO. |
THREAD |
|
DIMENSIONS |
||||||
|
E |
F |
|
|
A |
B |
S1 |
|
|
|
|
1T9-02SP |
R1/8"X28 |
R1/8"X28 |
|
|
21 |
21 |
11 |
|
|
|
1T9-02-04SP |
R1/8"X28 |
R1/4"X19 |
|
|
23.5 |
25.5 |
14 |
|
|
|
1T9-04SP |
R1/4"X19 |
R1/4"X19 |
|
|
25.5 |
25.5 |
14 |
|
|
|
1T9-04-06SP |
R1/4"X19 |
R3/8"X19 |
|
|
26.5 |
28.5 |
16 |
|
|
|
1T9-04-08SP |
R1/4"X19 |
R1/2"X14 |
|
|
30.5 |
36 |
22 |
|
|
|
1T9-06SP |
R3/8"X19 |
R3/8"X19 |
|
|
28.5 |
28.5 |
16 |
|
|
|
1T9-06-08SP |
R3/8"X19 |
R1/2"X14 |
|
|
32.5 |
36 |
22 |
|
|
|
1T9-08SP |
R1/2"X14 |
R1/2"X14 |
|
|
36 |
36 |
22 |
|
|
|
1T9-08-12SP |
R1/2"X14 |
R3/4"X14 |
|
|
39.5 |
43.5 |
27 |
|
|
|
1T9-12SP |
R3/4"X14 |
R3/4"X14 |
|
|
43.5 |
43.5 |
27 |
|
|
|
1T9-12-16SP |
R3/4"X14 |
R1"X11 |
|
|
48 |
50 |
33 |
|
|
|
1T9-16SP |
R1"X11 |
R1"X11 |
|
|
50 |
50 |
33 |
|
|
|
1T9-16-20SP |
R1"X11 |
R1.1/4"X11 |
|
|
56.5 |
57.5 |
41 |
|
|
|
1T9-20SP |
R1.1/4"X11 |
R1.1/4"X11 |
|
|
57.5 |
57.5 |
41 |
|
|
|
1T9-24SP |
R1.1/2"X11 |
R1.1/2"X11 |
|
|
62.5 |
62.5 |
48 |
|
|
|
1T9-32SP |
R2"X11 |
R2"X11 |
|
|
68 |
75 |
63 |
|
|
