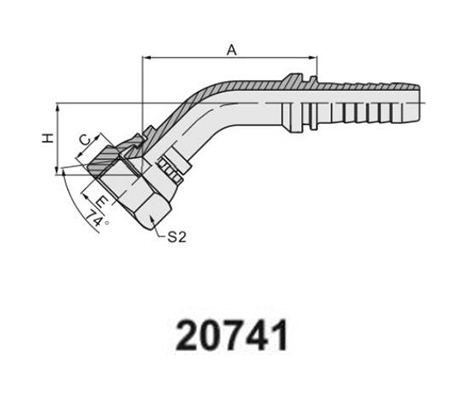

PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||
|
20741-14-04 |
M14X1.5 |
6 |
04 |
40.5 |
8.5 |
18.5 |
19 |
|
20741-16-05 |
M16X1.5 |
8 |
05 |
44.4 |
8 |
20 |
22 |
|
20741-18-06 |
M18X1.5 |
10 |
06 |
45.7 |
10 |
21.4 |
24 |
|
20741-22-08 |
M22X1.5 |
12 |
08 |
58.9 |
10 |
24 |
27 |
|
20741-27-10 |
M27X1.5 |
16 |
10 |
71.2 |
11 |
26.4 |
32 |
|
20741-30-12 |
M30X1.5 |
20 |
12 |
78.1 |
11 |
30 |
36 |
|
20741-33-12 |
M33X2 |
20 |
12 |
77.4 |
13 |
30 |
41 |
|
20741-33-16 |
M33X2 |
25 |
16 |
85 |
13 |
30.8 |
41 |
|
20741-36-14 |
M36X2 |
22 |
14 |
79.8 |
14 |
29.6 |
41 |
|
20741-36-16 |
M36X2 |
25 |
16 |
85.7 |
14 |
31.5 |
41 |
|
20741-39-16 |
M39X2 |
25 |
16 |
86.1 |
14 |
31.8 |
46 |
|
20741-45-20W |
M45X2 |
32 |
20 |
97 |
15 |
36.2 |
55 |
|
20741-52-24W |
M52X2 |
40 |
24 |
112.9 |
17 |
40.9 |
60 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20742-xx-xx. |
|||||||
