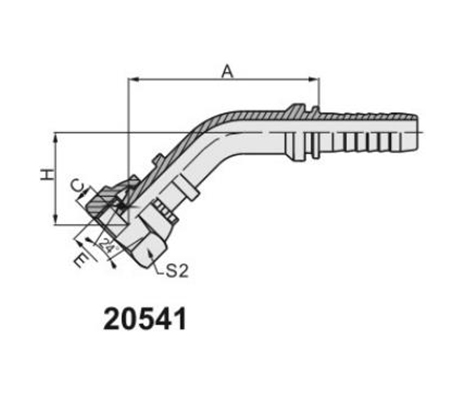

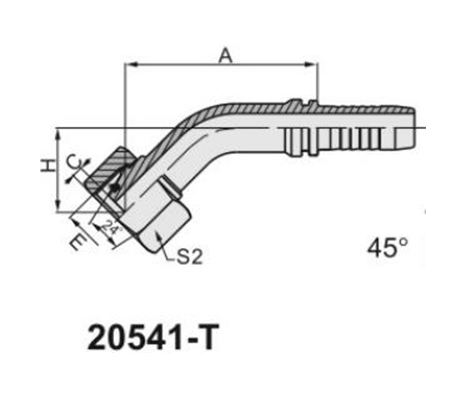

PART NO. |
THREAD E |
HOSE BORE |
TUBE O.D. |
O RING |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||||
|
20541-14-04 |
M14X1.5 |
6 |
04 |
6 |
O04.5X1.5 |
43.4 |
1.1 |
21.4 |
19 |
|
20541-16-04 |
M16X1.5 |
6 |
04 |
8 |
O06.5X1.5 |
44.4 |
1.5 |
22.3 |
22 |
|
20541-16-05 |
M16X1.5 |
8 |
05 |
8 |
O06.5X1.5 |
46.6 |
1.5 |
23.2 |
22 |
|
20541-18-04T |
M18X1.5 |
6 |
04 |
10 |
O08.0X1.5 |
43.4 |
2 |
21.3 |
22 |
|
20541-18-06 |
M18X1.5 |
10 |
06 |
10 |
O08.0X1.5 |
48.1 |
2 |
23.9 |
24 |
|
20541-20-06T |
M20X1.5 |
10 |
06 |
12 |
O10.0X1.5 |
49.7 |
2.5 |
25 |
24 |
|
20541-20-08 |
M20X1.5 |
12 |
08 |
12 |
O10.0X1.5 |
67.8 |
2.5 |
32.8 |
27 |
|
20541-22-06T |
M22X1.5 |
10 |
06 |
14 |
O11.0X2.0 |
49.6 |
2.5 |
25.3 |
27 |
|
20541-22-08 |
M22X1.5 |
12 |
08 |
14 |
O11.0X2.0 |
61.8 |
2.5 |
26.8 |
27 |
|
20541-24-08T |
M24X1.5 |
12 |
08 |
16 |
O13.0X2.0 |
62.5 |
3 |
27.5 |
30 |
|
20541-24-10 |
M24X1.5 |
16 |
10 |
16 |
O13.0X2.0 |
80.7 |
2.5 |
35.9 |
30 |
|
20541-30-10T |
M30X2 |
16 |
10 |
20 |
O16.3X2.4 |
75.8 |
3 |
31 |
36 |
|
20541-30-12 |
M30X2 |
20 |
12 |
20 |
O16.3X2.4 |
77.2 |
3 |
30.3 |
36 |
|
20541-36-12T |
M36X2 |
20 |
12 |
25 |
O20.3X2.4 |
82.7 |
3 |
34.6 |
41 |
|
20541-36-14T |
M36X2 |
22 |
14 |
25 |
O20.3X2.4 |
84.4 |
3 |
34 |
41 |
|
20541-42-16T |
M42X2 |
25 |
16 |
30 |
O25.3X2.4 |
92.3 |
5 |
36.8 |
50 |
|
20541-52-20T |
M52X2 |
32 |
20 |
38 |
O33.3X2.4 |
103.4 |
6.5 |
41.2 |
60 |
|
20541-52-24T |
M52X2 |
40 |
24 |
38 |
O33.3X2.4 |
115.9 |
6.5 |
45.1 |
60 |
|
Note:1 .For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20542-xx-xx. |
|||||||||
