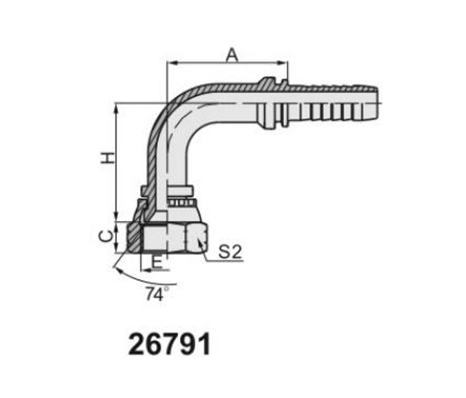

PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||
|
26791-04-03 |
7/16"X20 |
5 |
03 |
26.5 |
9 |
30.5 |
15 |
|
26791-04-04 |
7/16"X20 |
6 |
04 |
30 |
9 |
33.5 |
15 |
|
26791-05-04 |
1/2"X20 |
6 |
04 |
30 |
9.5 |
34 |
17 |
|
26791-05-05 |
1/2"X20 |
8 |
05 |
33 |
9.5 |
37 |
17 |
|
26791-05-06 |
1/2"X20 |
10 |
06 |
35.3 |
9.5 |
39.3 |
17 |
|
26791-06-04 |
9/16"X18 |
6 |
04 |
30 |
10.5 |
34 |
19 |
|
26791-06-05 |
9/16"X18 |
8 |
05 |
33 |
10.5 |
37 |
19 |
|
26791-06-06 |
9/16"X18 |
10 |
06 |
35.3 |
10.5 |
39.3 |
19 |
|
26791-06-08 |
9/16"X18 |
12 |
08 |
41 |
10.5 |
45.5 |
19 |
|
26791-08-06 |
3/4"X16 |
10 |
06 |
35.3 |
11 |
41.3 |
24 |
|
26791-08-08 |
3/4"X16 |
12 |
08 |
41 |
11 |
47 |
24 |
|
26791-08-10 |
3/4"X16 |
16 |
10 |
56.5 |
11 |
51.5 |
24 |
|
26791-10-08 |
7/8"X14 |
12 |
08 |
41 |
13 |
48 |
27 |
|
26791-10-10 |
7/8"X14 |
16 |
10 |
56.5 |
13 |
52.5 |
27 |
|
26791-10-12 |
7/8"X14 |
20 |
12 |
67 |
13 |
64 |
27 |
|
26791-12-08 |
1.1/16"X12 |
12 |
08 |
41 |
15 |
49.5 |
32 |
|
26791-12-10 |
1.1/16"X12 |
16 |
10 |
56.5 |
15 |
54 |
32 |
|
26791-12-12 |
1.1/16"X12 |
20 |
12 |
65.5 |
15 |
63.5 |
32 |
|
26791-12-16 |
1.1/16"X12 |
25 |
16 |
76.7 |
15 |
70 |
32 |
|
26791-14-12 |
1.3/16"X12 |
20 |
12 |
65.5 |
15 |
63.5 |
36 |
|
26791-16-12 |
1.5/16"X12 |
20 |
12 |
65.5 |
16 |
63.5 |
41 |
|
26791-16-16 |
1.5/16"X12 |
25 |
16 |
76.7 |
16 |
70 |
41 |
|
26791-16-20 |
1.5/16"X12 |
32 |
20 |
91.5 |
16 |
81 |
41 |
|

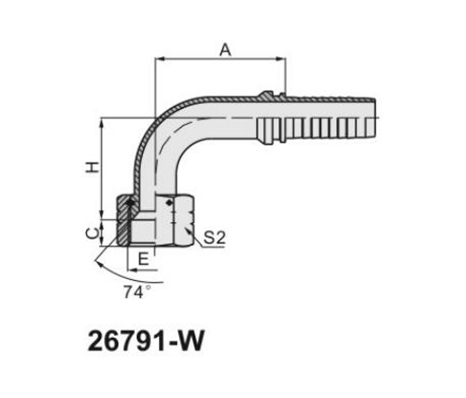

26791-20-20W |
1.5/8"X12 |
32 |
20 |
91.5 |
17 |
80.5 |
50 |
|
26791-24-20W |
1.7/8"X12 |
32 |
20 |
91.5 |
20 |
79.5 |
55 |
|
26791-24-24W |
1.7/8"X12 |
40 |
24 |
109.4 |
20 |
94 |
55 |
|
26791-32-32W |
2.1/2"X12 |
50 |
32 |
133.1 |
23.5 |
121.8 |
75 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26792-xx-xx. |
|||||||
