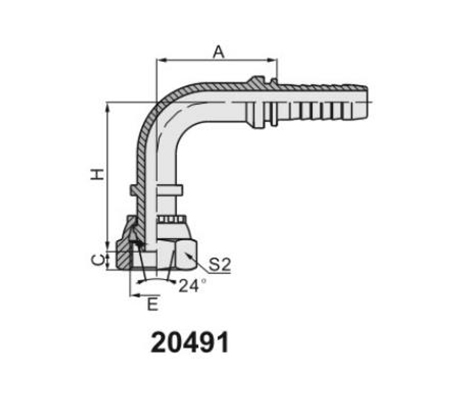

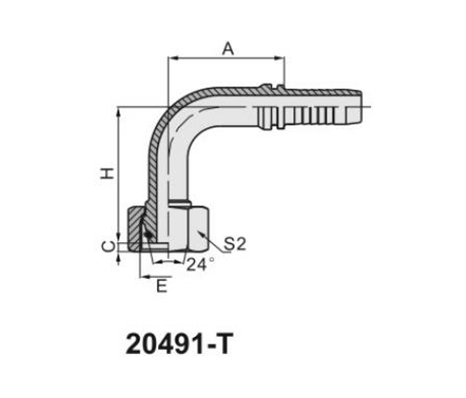

PART NO. |
THREAD E |
HOSE BORE |
|
|
DIMENSIONS |
||||
|
DN |
DASH |
TUBE O.D. |
O RING |
A |
C |
H |
S2 |
||
|
20491-12-03 |
M12X1.5 |
5 |
03 |
6 |
O04.5X1.5 |
26.5 |
1 |
35 |
17 |
|
20491-12-04 |
M12X1.5 |
6 |
04 |
6 |
O04.5X1.5 |
30 |
1 |
44.5 |
17 |
|
20491-14-04 |
M14X1.5 |
6 |
04 |
8 |
O06.5X1.5 |
30 |
2 |
38 |
19 |
|
20491-16-04 |
M16X1.5 |
6 |
04 |
10 |
O08.0X1.5 |
30 |
2 |
39 |
22 |
|
20491-16-05 |
M16X1.5 |
8 |
05 |
10 |
O08.0X1.5 |
33 |
2 |
42 |
22 |
|
20491-16-06 |
M16X1.5 |
10 |
06 |
10 |
O08.0X1.5 |
35.3 |
2 |
51.8 |
22 |
|
20491-18-05T |
M18X1.5 |
8 |
05 |
12 |
O10.0X1.5 |
33 |
2.5 |
42 |
22 |
|
20491-18-06 |
M18X1.5 |
10 |
06 |
12 |
O10.0X1.5 |
35.3 |
2.5 |
44.3 |
24 |
|
20491-22-06T |
M22X1.5 |
10 |
06 |
15 |
O12.0X2.0 |
35.3 |
2.5 |
47.3 |
27 |
|
20491-22-08 |
M22X1.5 |
12 |
08 |
15 |
O12.0X2.0 |
41 |
2.5 |
52 |
27 |
|
20491-26-08T |
M26X1.5 |
12 |
08 |
18 |
O15.0X2.0 |
42 |
2.5 |
51 |
32 |
|
20491-26-10 |
M26X1.5 |
16 |
10 |
18 |
O15.0X2.0 |
56.5 |
2.5 |
58.5 |
32 |
|
20491-26-12 |
M26X1.5 |
20 |
12 |
18 |
O15.0X2.0 |
65.5 |
2.5 |
77 |
32 |
|
20491-27-10T |
M27X1.5 |
16 |
10 |
18 |
O15.0X2.0 |
56.5 |
2.5 |
67.5 |
32 |
|
20491-27-12 |
M27X1.5 |
20 |
12 |
18 |
O15.0X2.0 |
65.5 |
2.5 |
77 |
32 |
|
20491-30-10T |
M30X2 |
16 |
10 |
22 |
O20.0X2.0 |
56.5 |
4 |
57.2 |
36 |
|
20491-30-12 |
M30X2 |
20 |
12 |
22 |
O20.0X2.0 |
65.5 |
4 |
63 |
36 |
|
20491-36-12T |
M36X2 |
20 |
12 |
28 |
O26.0X2.0 |
65.5 |
4 |
69 |
41 |
|
20491-36-14T |
M36X2 |
22 |
14 |
28 |
O26.0X2.0 |
71.2 |
4 |
70 |
41 |
|
20491-45-16T |
M45X2 |
25 |
16 |
35 |
O32.0X2.5 |
76.7 |
5 |
75 |
55 |
|
20491-45-20T |
M45X2 |
32 |
20 |
35 |
O32.0X2.5 |
91.5 |
5 |
88.5 |
55 |
|
20491-52-20T |
M52X2 |
32 |
20 |
42 |
O38.0X2.5 |
93 |
5.5 |
87 |
60 |
|
20491-52-24T |
M52X2 |
40 |
24 |
42 |
O38.0X2.5 |
109.4 |
5.5 |
104 |
60 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 20492-xx-xx. |
|||||||||
