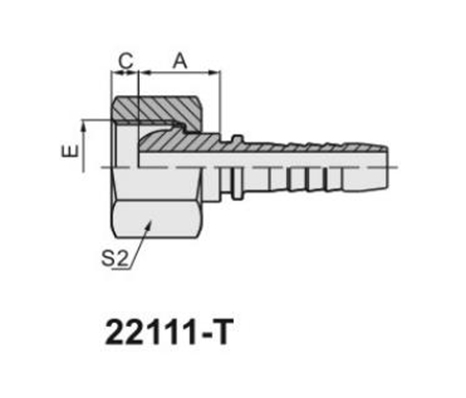

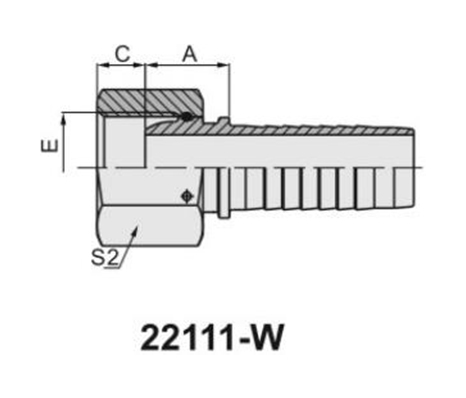

PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S2 |
||
|
22111-02-04 |
G1/8"X28 |
6 |
04 |
19 |
2 |
14 |
|
22111-04-03 |
G1/4"X19 |
5 |
03 |
19 |
4 |
19 |
|
22111-04-04 |
G1/4"X19 |
6 |
04 |
19.5 |
4 |
19 |
|
22111-06-05 |
G3/8"X19 |
8 |
05 |
20 |
5 |
22 |
|
22111-06-06 |
G3/8"X19 |
10 |
06 |
20.5 |
5 |
22 |
|
22111-06-08 |
G3/8"X19 |
12 |
08 |
21 |
5 |
22 |
|
22111-08-06T |
G1/2"X14 |
10 |
06 |
22.5 |
6 |
27 |
|
22111-08-08 |
G1/2"X14 |
12 |
08 |
23 |
6 |
27 |
|
22111-08-10 |
G1/2"X14 |
16 |
10 |
24 |
6 |
27 |
|
22111-10-10 |
G5/8"X14 |
16 |
10 |
25 |
8 |
30 |
|
22111-10-12 |
G5/8"X14 |
20 |
12 |
25 |
8 |
30 |
|
22111-12-08T |
G3/4"X14 |
12 |
08 |
25 |
9.5 |
32 |
|
22111-12-10 |
G3/4"X14 |
16 |
10 |
26 |
9.5 |
32 |
|
22111-12-12 |
G3/4"X14 |
20 |
12 |
26 |
9.5 |
32 |
|
22111-16-12T |
G1"X11 |
20 |
12 |
26.5 |
11 |
41 |
|
22111-16-14 |
G1"X11 |
22 |
14 |
26.5 |
11 |
41 |
|
22111-16-16 |
G1"X11 |
25 |
16 |
28 |
11 |
41 |
|
22111-20-16T |
G1.1/4"X11 |
25 |
16 |
27.5 |
11 |
50 |
|
22111-20-20W |
G1.1/4"X11 |
32 |
20 |
31.5 |
10 |
50 |
|
22111-24-24W |
G1.1/2"X11 |
40 |
24 |
37 |
11.5 |
55 |
|
22111-32-32W |
G2"X11 |
50 |
32 |
34 |
15 |
70 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 22112-xx-xx. |
||||||
