PART NO. |
THREAD E |
HOSE BORE |

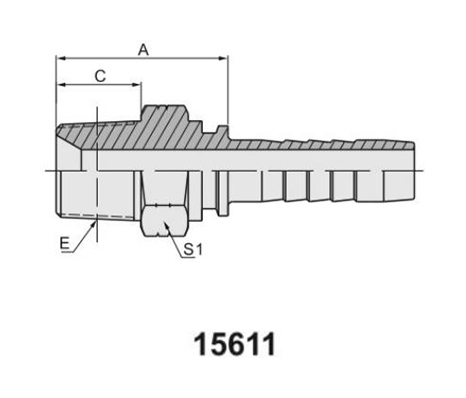

DIMENSIONS |
|||
|
DN |
DASH |
A |
C |
S1 |
||
|
15611-02-03 |
Z1/8"X27 |
5 |
03 |
22.5 |
10.5 |
12 |
|
15611-02-04 |
Z1/8"X27 |
6 |
04 |
22.5 |
10.5 |
12 |
|
15611-04-03 |
Z1/4"X18 |
5 |
03 |
27.5 |
15 |
17 |
|
15611-04-04 |
Z1/4"X18 |
6 |
04 |
28 |
15 |
17 |
|
15611-04-05 |
Z1/4"X18 |
8 |
05 |
28 |
15 |
17 |
|
15611-04-06 |
Z1/4"X18 |
10 |
06 |
27 |
15 |
17 |
|
15611-06-04 |
Z3/8"X18 |
6 |
04 |
28 |
16 |
19 |
|
15611-06-05 |
Z3/8"X18 |
8 |
05 |
28 |
16 |
19 |
|
15611-06-06 |
Z3/8"X18 |
10 |
06 |
30 |
16 |
19 |
|
15611-06-08 |
Z3/8"X18 |
12 |
08 |
30.5 |
16 |
19 |
|
15611-08-06 |
Z1/2"X14 |
10 |
06 |
34.5 |
19.5 |
22 |
|
15611-08-08 |
Z1/2"X14 |
12 |
08 |
34.5 |
19.5 |
22 |
|
15611-08-10 |
Z1/2"X14 |
16 |
10 |
36 |
19.5 |
22 |
|
15611-12-08 |
Z3/4"X14 |
12 |
08 |
37.5 |
19.5 |
27 |
|
15611-12-10 |
Z3/4"X14 |
16 |
10 |
38 |
19.5 |
27 |
|
15611-12-12 |
Z3/4"X14 |
20 |
12 |
38.5 |
19.5 |
27 |
|
15611-12-16 |
Z3/4"X14 |
25 |
16 |
39.5 |
19.5 |
32 |
|
15611-16-10 |
Z1"X11.5 |
16 |
10 |
45 |
25.5 |
36 |
|
15611-16-12 |
Z1"X11.5 |
20 |
12 |
45 |
25.5 |
36 |
|
15611-16-16 |
Z1"X11.5 |
25 |
16 |
44.5 |
25.5 |
36 |
|
15611-20-16 |
Z1.1/4"X11.5 |
25 |
16 |
49.5 |
26.5 |
46 |
|
15611-20-20 |
Z1.1/4"X11.5 |
32 |
20 |
49 |
26.5 |
46 |
|
15611-24-24 |
Z1.1/2"X11.5 |
40 |
24 |
51 |
27.5 |
50 |
|
15611-32-32 |
Z2"X11.5 |
50 |
32 |
55 |
27.5 |
65 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 15612-xx-xx. |
||||||
