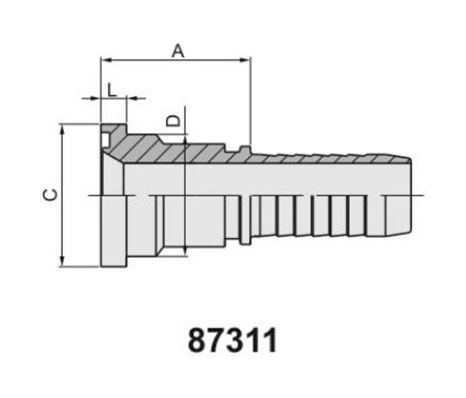

PART NO. |
FLANGE SIZE |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
D |
L |
||
|
87311-08-08 |
1/2" |
12 |
08 |
46 |
30.2 |
24 |
6.73 |
|
87311-12-08 |
3/4" |
12 |
08 |
47 |
38.1 |
31.7 |
6.73 |
|
87311-12-10 |
3/4" |
16 |
10 |
48 |
38.1 |
31.7 |
6.73 |
|
87311-12-12 |
3/4" |
20 |
12 |
48 |
38.1 |
31.7 |
6.73 |
|
87311-12-16 |
3/4" |
25 |
16 |
49 |
38.1 |
31.7 |
6.73 |
|
87311-16-12 |
1" |
20 |
12 |
51 |
44.4 |
38 |
8 |
|
87311-16-16 |
1" |
25 |
16 |
52 |
44.4 |
38 |
8 |
|
87311-16-20 |
1" |
32 |
20 |
53 |
44.4 |
38 |
8 |
|
87311-20-16 |
1.1/4" |
25 |
16 |
57 |
50.8 |
43 |
8 |
|
87311-20-20 |
1.1/4" |
32 |
20 |
58 |
50.8 |
43 |
8 |
|
87311-24-20 |
1.1/2" |
32 |
20 |
68 |
60.3 |
50 |
8 |
|
87311-24-24 |
1.1/2" |
40 |
24 |
68 |
60.3 |
50 |
8 |
|
87311-32-24 |
2" |
40 |
24 |
70 |
71.4 |
62 |
9.53 |
|
87311-32-32 |
2" |
50 |
32 |
70 |
71.4 |
62 |
9.53 |
|
87311-40-40 |
2.1/2" |
64 |
40 |
76 |
84.1 |
74 |
9.53 |
|
Note: 1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 87312-xx-xx. |
|||||||
