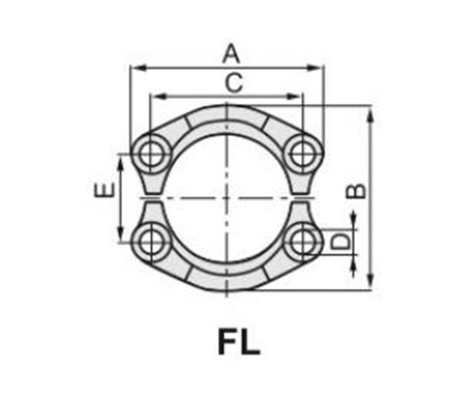

SAE SPLIT FLANGE CLAMPS 3000 PSI ISO 6162—SAE J518

Home / Specification / Hose Fittings / SAE SPLIT FLANGE CLAMPS 3000 PSI ISO 6162—SAE J518

How Can We Help You?

+86-13805809210 Contact Us

SAE SPLIT FLANGE CLAMPS 3000 PSI ISO 6162—SAE J518

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    FLANGE SIZE

    DIMENSIONS

    BOLT

    MPa

    A

    B

    C

    D

    E

    FL-08

    1/2"

    53.8

    46.1

    38.1

    9

    17.5

    M8X25

    34.5

    FL-12

    3/4"

    65

    52.4

    47.6

    11

    22.2

    M10X30

    34.5

    FL-16

    1"

    69.9

    58.7

    52.4

    11

    26.2

    M10X30

    34.5

    FL-20

    1.1/4"

    79.2

    73

    58.7

    11

    30.2

    M10X30

    27.6

    FL-24

    1.1/2"

    93.7

    82.6

    69.9

    13.5

    35.7

    M12X35

    20.7

    FL-32

    2"

    101.6

    96.8

    77.8

    13.5

    42.9

    M12X35

    20.7

    FL-40

    2.1/4"

    114

    109

    88.9

    13.5

    50.8

    M12X40

    10

    Note:Bolt should be ordered another.
