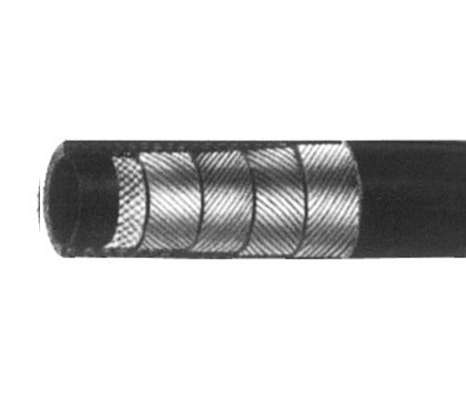

Inner Tube:Oil Resistant Synthetic Rubber
Reinforcement:4 Wire Sprials Reinforcement
Cover:Oil And Weather Resistant Synthetic
Temperature Range: -40℃~+100℃
xxxx2-xx-xx Series
|
HOSE PART NO. |
DN |
HOSE SIZE |
HOSE I.D. |
HOSE O.D. |
MIN.BURST PERS. |
MAX.W.P. |
MIN.BEND. RAD. |
FERRULE |
|
|
mm |
DASH |
in |
mm |
mm |
MPa |
MPa |
mm |
||
|
4SP04 |
6 |
-04 |
1 /4 |
6.4 |
17.9 |
180 |
45.0 |
150 |
00400-04 |
|
4SP06 |
10 |
-06 |
3/8 |
9.5 |
21.4 |
178 |
44.5 |
180 |
00400-06 |
|
4SP08 |
12 |
-08 |
1 12 |
12.7 |
24.6 |
166 |
41.5 |
230 |
00400-08 |
|
4SP10 |
16 |
-10 |
5/8 |
15.9 |
28.2 |
140 |
35.0 |
250 |
00400-10 |
|
4SP12 |
20 |
-12 |
3/4 |
19.0 |
32.2 |
140 |
35.0 |
300 |
00400-12 |
|
4SP16 |
25 |
-16 |
1 |
25.4 |
39.7 |
112 |
28.0 |
340 |
00400-16 |
|
4SP20 |
32 |
-20 |
1.1 /4 |
31.8 |
50.8 |
84 |
21.0 |
460 |
00400-20 |
|
4SP24 |
40 |
-24 |
1.1 12 |
38.1 |
57.2 |
74 |
18.5 |
560 |
00400-24 |
|
4SP32 |
50 |
-32 |
2 |
50.8 |
69.8 |
66 |
16.5 |
660 |
00400-32 |
