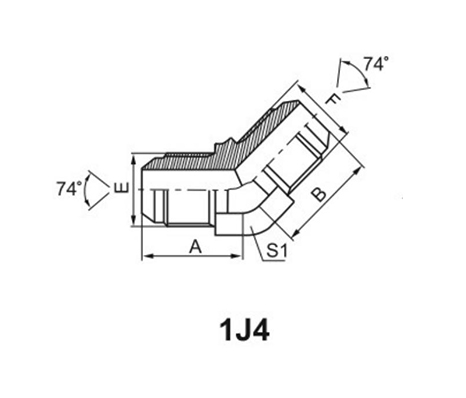

45° ELBOW JIC MALE 74° CONE

Home / Specification / Hydraulic Adapter / JIC 74° Cone Flared Tube Fittings / 45° ELBOW JIC MALE 74° CONE

How Can We Help You?

+86-13805809210 Contact Us

45° ELBOW JIC MALE 74° CONE

+86-13967892895 Contact Us
  • Description
  • Additional Information

  •  PART NO.

    THREAD



     DIMENSIONS

    E

    F





    A

    B

    S1





    1J4-04

    7/16"X20

    7/16”X20





    21.5

    21.5

    11





    1J4-05

    1/2”X20

    1/2"X20





    23

    23

    14





    1J4-06

    9/16”X18

    9/16"X18





    22.8

    22.8

    14





    1J4-08

    3/4"X16

    3/4”X16





    26.8

    26.8

    19





    1J4-10

    7/8”X14

    7/8"X14





    31

    31

    22





    1J4-12

    1.1/16”X12

    1.1/16”X12





    35.5

    35.5

    27





    1J4-16

    1.5/16”X12

    1.5/16"X12





    38.5

    38.5

    33

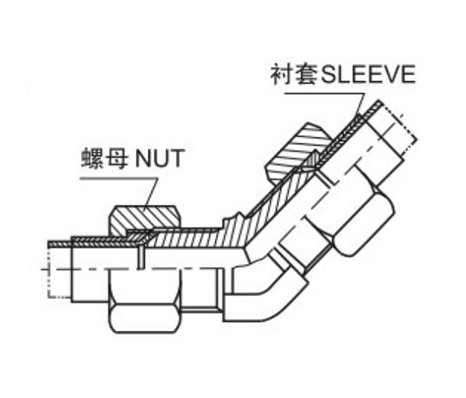

    Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube.
