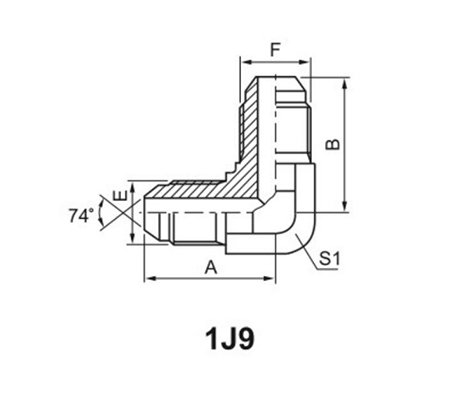

PART NO. |
THREAD |
|
DIMENSIONS |
||||||
|
E |
F |
|
|
A |
B |
S1 |
|
|
|
|
1J9-02 |
5/16"X24 |
5/16"X24 |
|
|
20.5 |
20.5 |
11 |
|
|
|
1J9-03 |
3/8"X24 |
3/8”X24 |
|
|
22 |
22 |
11 |
|
|
|
1J9-04 |
7/16"X20 |
7/16”X20 |
|
|
24.5 |
24.5 |
11 |
|
|
|
1J9-05 |
1/2"X20 |
1/2"X20 |
|
|
26.6 |
26.6 |
14 |
|
|
|
1J9-05-06 |
1/2"X20 |
9/16”X18 |
|
|
26.6 |
26.9 |
14 |
|
|
|
1J9-06 |
9/16"X18 |
9/16”X18 |
|
|
26.9 |
26.9 |
14 |
|
|
|
1J9-06-08 |
9/16"X18 |
3/4"X16 |
|
|
30 |
32 |
19 |
|
|
|
1J9-06-10 |
9/16"X18 |
7/8”X14 |
|
|
32 |
37.8 |
22 |
|
|
|
1J9-08 |
3/4"X16 |
3/4"X16 |
|
|
32 |
32 |
19 |
|
|
|
1J9-08-10 |
3/4"X16 |
7/8”X14 |
|
|
34.8 |
37.8 |
22 |
|
|
|
1J9-10 |
7/8"X14 |
7/8"X14 |
|
|
37.8 |
37.8 |
22 |
|
|
|
1J9-10-12 |
7/8"X14 |
1.1/16"X12 |
|
|
41 |
44.2 |
27 |
|
|
|
1J9-12 |
1.1/16"X12 |
1.1/16"X12 |
|
|
44.2 |
44.2 |
27 |
|
|
|
1J9-14 |
1.3/16"X12 |
1.3/16"X12 |
|
|
47.5 |
47.5 |
30 |
|
|
|
1J9-16 |
1.5/16"X12 |
1.5/16"X12 |
|
|
49 |
49 |
33 |
|
|
|
1J9-20 |
1.5/8"X12 |
1.5/8"X12 |
|
|
55.5 |
55.5 |
41 |
|
|
|
1J9-24 |
1.7/8"X12 |
1.7/8"X12 |
|
|
62.5 |
62.5 |
48 |
|
|
|
1J9-32 |
2.1/2"X12 |
2.1/2"X12 |
|
|
78 |
78 |
63 |
|
|
|

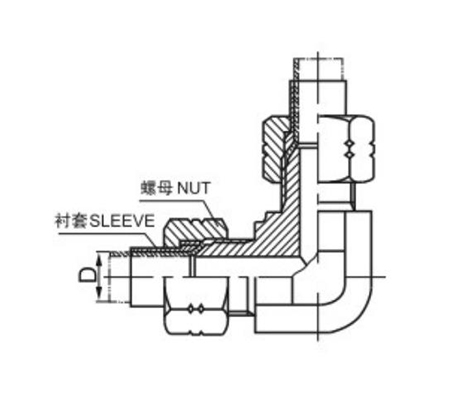

Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. |
|||||||||
