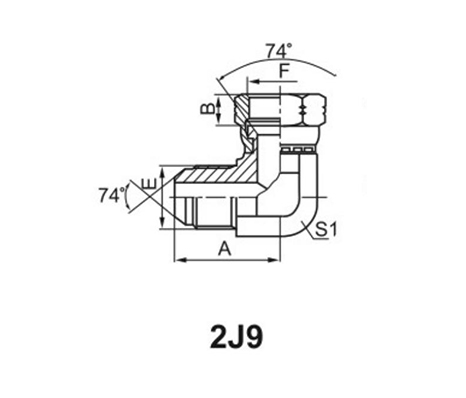

PART NO. |
THREAD |
|
DIMENSIONS |
||||||
|
E |
F |
|
|
A |
B |
S1 |
S2 |
|
|
|
2J9-02 |
5/16"X24 |
5/16”X24 |
|
|
21 |
5.6 |
11 |
12 |
|
|
2J9-03 |
3/8"X24 |
3/8"X24 |
|
|
22 |
5 |
11 |
14 |
|
|
2J9-04 |
7/16"X20 |
7/16”X20 |
|
|
24.5 |
9 |
11 |
15 |
|
|
2J9-05 |
1/2"X20 |
1/2”X20 |
|
|
26.5 |
9.5 |
14 |
17 |
|
|
2J9-06 |
9/16"X18 |
9/16”X18 |
|
|
26.9 |
10.5 |
14 |
19 |
|
|
2J9-06-08 |
9/16"X18 |
3/4”X16 |
|
|
28.5 |
11 |
16 |
24 |
|
|
2J9-08-06 |
3/4"X16 |
9/16”X18 |
|
|
32 |
10.5 |
19 |
19 |
|
|
2J9-08 |
3/4”X16 |
3/4"X16 |
|
|
32 |
11 |
19 |
24 |
|
|
2J9-08-10 |
3/4"X16 |
7/8”X14 |
|
|
32 |
13 |
19 |
27 |
|
|
2J9-10 |
7/8"X14 |
7/8”X14 |
|
|
37.8 |
13 |
22 |
27 |
|
|
2J9-10-08 |
7/8"X14 |
3/4”X16 |
|
|
37.8 |
11 |
22 |
24 |
|
|
2J9-10-12 |
7/8"X14 |
1.1/16"X12 |
|
|
39.5 |
15 |
24 |
32 |
|
|
2J9-12 |
1.1/16"X12 |
1.1/16"X12 |
|
|
44.2 |
15 |
27 |
32 |
|
|
2J9-12-10 |
1.1/16"X12 |
7/8"X14 |
|
|
44.2 |
13 |
27 |
27 |
|
|
2J9-12-16 |
1.1/16"X12 |
1.5/16"X12 |
|
|
46 |
16 |
30 |
41 |
|
|
2J9-14 |
1.3/16"X12 |
1.3/16"X12 |
|
|
47.5 |
15 |
30 |
36 |
|
|
2J9-16 |
1.5/16"X12 |
1.5/16"X12 |
|
|
48.8 |
16 |
33 |
41 |
|
|
2J9-16-20 |
1.5/16"X12 |
1.5/8"X12 |
|
|
54 |
17 |
41 |
50 |
|
|
2J9-20-16 |
1.5/8"X12 |
1.5/16"X12 |
|
|
55.5 |
16 |
41 |
41 |
|
|
2J9-20 |
1.5/8"X12 |
1.5/8"X12 |
|
|
55.5 |
17 |
41 |
50 |
|
|
2J9-20-24 |
1.5/8"X12 |
1.7/8"X12 |
|
|
59.5 |
20 |
48 |
55 |
|
|
2J9-24-20 |
1.7/8"X12 |
1.5/8"X12 |
|
|
62.5 |
17 |
48 |
50 |
|
|
2J9-24 |
1.7/8"X12 |
1.7/8"X12 |
|
|
62.5 |
20 |
48 |
55 |
|
|
2J9-32 |
2.1/2"X12 |
2.1/2"X12 |
|
|
75.5 |
24.5 |
63 |
75 |
|
|

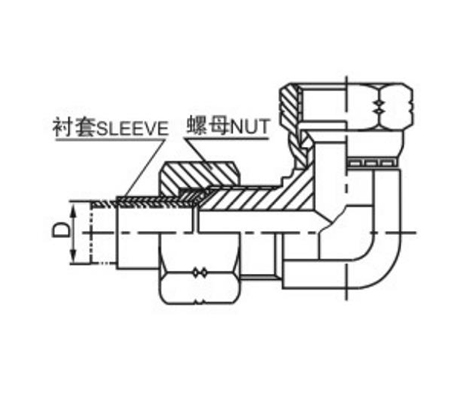

Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. |
|||||||||
