JIC INCH SLEEVE

Home / Specification / Hydraulic Adapter / JIC 74° Cone Flared Tube Fittings / JIC INCH SLEEVE

How Can We Help You?

+86-13805809210 Contact Us

JIC INCH SLEEVE

+86-13967892895 Contact Us
  • Description
  • Additional Information

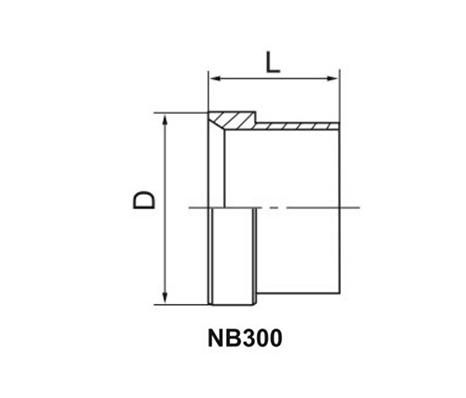

  • PART NO.

    THREAD

    TUBE O.D.

    DIMENSIONS





    in



    D

    L







    NB300-04

    7/16"X20



    1/4"



    9.73

    10.4







    NB300-05

    1/2"X20



    5/16"



    11.3

    11.2







    NB300-06

    9/16"X18



    3/8"



    12.75

    12.7







    NB300-08

    3/4"X16



    1/2"



    17.32

    14.2







    NB300-10

    7/8"X14



    5/8"



    20.24

    16.8







    NB300-12

    1.1/16"X12



    3/4"



    24.69

    17.3







    NB300-14

    1.3/16"X12



    7/8"



    27.86

    19.3







    NB300-16

    1.5/16"X12



    1"



    31.04

    19.8







    NB300-20

    1.5/8"X12



    1.1/4"



    38.96

    23.1







    NB300-24

    1.7/8"X12



    1.1/2"



    45.31

    28.4







    NB300-32

    2.1/2"X12



    2"



    61.19

    30.2
