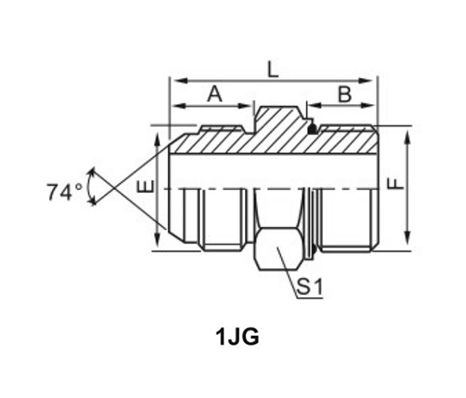

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E |
F |
|
F |
A |
B |
L |
S1 |
|
|
|
1JG-04-02 |
7/16"X20 |
G1/8"X28 |
|
O011 |
14 |
9.5 |
31 |
14 |
|
|
1JG-04 |
7/16"X20 |
G1/4"X19 |
|
O111 |
14 |
10 |
32.5 |
19 |
|
|
1JG-04-06 |
7/16”X20 |
G3/8"X19 |
|
O113 |
14 |
11.5 |
34 |
22 |
|
|
1JG-04-08 |
7/16”X20 |
G1/2"X14 |
|
O115 |
14 |
14 |
39 |
27 |
|
|
1JG-05-04 |
1/2"X20 |
G1/4"X19 |
|
O111 |
14 |
10 |
33 |
19 |
|
|
1JG-05-06 |
1/2"X20 |
G3/8"X19 |
|
O113 |
14 |
11.5 |
36 |
22 |
|
|
1JG-05-08 |
1/2"X20 |
G1/2"X14 |
|
O115 |
14 |
14 |
39 |
27 |
|
|
1JG-06-04 |
9/16"X18 |
G1/4"X19 |
|
O111 |
14.1 |
11 |
31.5 |
19 |
|
|
1JG-06 |
9/16"X18 |
G3/8"X19 |
|
O113 |
14.1 |
11.5 |
34 |
22 |
|
|
1JG-06-08 |
9/16"X18 |
G1/2"X14 |
|
O115 |
14.1 |
14 |
39 |
27 |
|
|
1JG-08-04 |
3/4"X16 |
G1/4"X19 |
|
O111 |
16.7 |
10 |
36 |
22 |
|
|
1JG-08-06 |
3/4"X16 |
G3/8"X19 |
|
O113 |
16.7 |
11.5 |
37 |
22 |
|
|
1JG-08 |
3/4"X16 |
G1/2"X14 |
|
O115 |
16.7 |
14 |
42 |
27 |
|
|
1JG-08-12 |
3/4"X16 |
G3/4"X14 |
|
O119 |
16.7 |
15.5 |
44 |
32 |
|
|
1JG-10-06 |
7/8"X14 |
G3/8"X19 |
|
O113 |
19.3 |
11.5 |
39.5 |
24 |
|
|
1JG-10-08 |
7/8"X14 |
G1/2"X14 |
|
O115 |
19.3 |
14 |
44.5 |
27 |
|
|
1JG-10-12 |
7/8"X14 |
G3/4"X14 |
|
O119 |
19.3 |
15.5 |
48.5 |
32 |
|
|
1JG-12-08 |
1.1/16"X12 |
G1/2"X14 |
|
O115 |
22 |
14 |
49 |
30 |
|
|
1JG-12 |
1.1/16"X12 |
G3/4"X14 |
|
O119 |
22 |
15.5 |
49.5 |
32 |
|
|
1JG-12-16 |
1.1/16"X12 |
G1"X11 |
|
O217 |
22 |
18 |
54 |
41 |
|
|
1JG-12-20 |
1.1/16"X12 |
G1.1/4"X11 |
|
O222 |
22 |
20 |
57 |
50 |
|
|
1JG-16-12 |
1.5/16"X12 |
G3/4”X14 |
|
O119 |
23 |
15.5 |
52.5 |
36 |
|
|
1JG-16 |
1.5/16"X12 |
G1"X11 |
|
O217 |
23 |
18 |
55 |
41 |
|
|
1JG-16-20 |
1.5/16"X12 |
G1.1/4"X11 |
|
O222 |
23 |
20 |
58 |
50 |
|
|
1JG-20-16 |
1.5/8"X12 |
G1"X11 |
|
O217 |
24.3 |
18 |
58 |
46 |
|
|
1JG-20 |
1.5/8"X12 |
G1.1/4"X11 |
|
O222 |
24.3 |
20 |
59.5 |
50 |
|
|
1JG-24-16 |
1.7/8"X12 |
G1"X11 |
|
O217 |
27.5 |
18 |
63.5 |
50 |
|
|
1JG-24-20 |
1.7/8"X12 |
G1.1/4"X11 |
|
O222 |
27.5 |
20 |
65.5 |
50 |
|
|
1JG-24 |
1.7/8"X12 |
G1.1/2"X11 |
|
O224 |
27.5 |
21.5 |
64 |
55 |
|
|

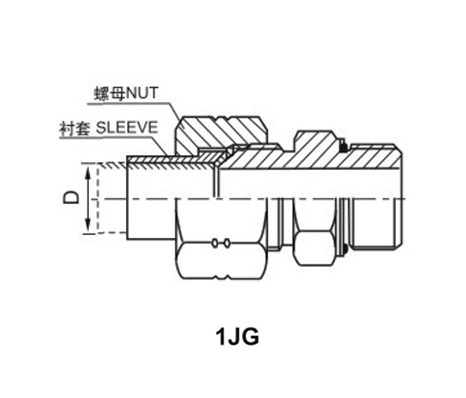

Note:Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. |
|||||||||
