PART NO. |
THREAD |
|

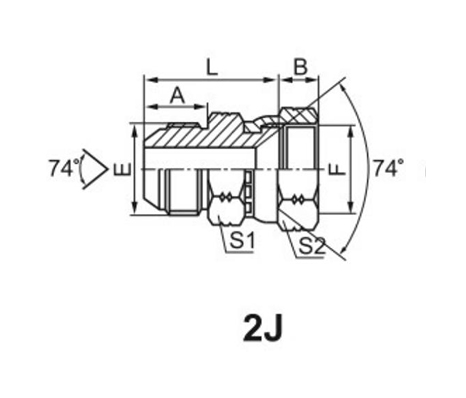

DIMENSIONS |
||||||
|
E |
F |
|
|
A |
B |
L |
S1 |
S2 |
|
|
2J-04 |
7/16"X20 |
7/16”X20 |
|
|
14 |
9 |
28 |
12 |
15 |
|
2J-04-05 |
7/16"X20 |
1/2”X20 |
|
|
14 |
9.5 |
28.5 |
12 |
17 |
|
2J-04-06 |
7/16"X20 |
9/16”X18 |
|
|
14 |
10.5 |
28.5 |
14 |
19 |
|
2J-04-08 |
7/16"X20 |
3/4"X16 |
|
|
14 |
11 |
30.5 |
19 |
24 |
|
2J-05 |
1/2"X20 |
1/2”X20 |
|
|
14 |
9.5 |
29 |
14 |
17 |
|
2J-05-06 |
1/2"X20 |
9/16”X18 |
|
|
14 |
10.5 |
28.5 |
14 |
19 |
|
2J-05-08 |
1/2"X20 |
3/4”X16 |
|
|
14 |
11 |
30.5 |
19 |
24 |
|
2J-06 |
9/16"X18 |
9/16”X18 |
|
|
14.1 |
10.5 |
29 |
17 |
19 |
|
2J-06-08 |
9/16"X18 |
3/4"X16 |
|
|
14.1 |
11 |
31 |
19 |
24 |
|
2J-06-10 |
9/16"X18 |
7/8"X14 |
|
|
14.1 |
13 |
33.5 |
22 |
27 |
|
2J-08 |
3/4"X16 |
3/4”X16 |
|
|
16.7 |
11 |
36 |
22 |
24 |
|
2J-08-06 |
3/4"X16 |
9/16”X18 |
|
|
16.7 |
10.5 |
34 |
22 |
19 |
|
2J-08-10 |
3/4"X16 |
7/8"X14 |
|
|
16.7 |
13 |
36.5 |
22 |
27 |
|
2J-08-12 |
3/4"X16 |
1.1/16”X12 |
|
|
16.7 |
15 |
39.5 |
27 |
32 |
|
2J-10 |
7/8"X14 |
7/8"X14 |
|
|
19.3 |
13 |
39 |
24 |
27 |
|
2J-10-08 |
7/8"X14 |
3/4”X16 |
|
|
19.3 |
11 |
38 |
24 |
24 |
|
2J-10-12 |
7/8"X14 |
1.1/16"X12 |
|
|
19.3 |
15 |
42 |
27 |
32 |
|
2J-12 |
1.1/16"X12 |
1.1/16"X12 |
|
|
21.9 |
15 |
44.5 |
30 |
32 |
|
2J-12-10 |
1.1/16"X12 |
7/8”X14 |
|
|
21.9 |
13 |
43.5 |
30 |
27 |
|
2J-12-16 |
1.。。1/16"X12 |
1.5/16"X12 |
|
|
21.9 |
16 |
45.5 |
36 |
41 |
|
2J-16 |
1.5/16"X12 |
1.5/16”X12 |
|
|
23.1 |
16 |
46.5 |
36 |
41 |
|
2J-16-20 |
1.5/16"X12 |
1.5/8"X12 |
|
|
23.1 |
17 |
53 |
41 |
50 |
|
2J-20 |
1.5/8"X12 |
1.5/8”X12 |
|
|
24.3 |
17 |
54.5 |
46 |
50 |
|
2J-20-24 |
1.5/8"X12 |
1.7/8"X12 |
|
|
24.3 |
20 |
55.5 |
46 |
55 |
|
2J-24 |
1.7/8"X12 |
1.7/8"X12 |
|
|
27.5 |
20 |
61 |
50 |
55 |
|
2J-24-32 |
1.7/8"X12 |
2.1/2”X12 |
|
|
27.5 |
24.5 |
63 |
65 |
75 |
|
2J-32 |
2.1/2"X12 |
2.1/2”X12 |
|
|
33.9 |
24.5 |
69.5 |
65 |
75 |
|

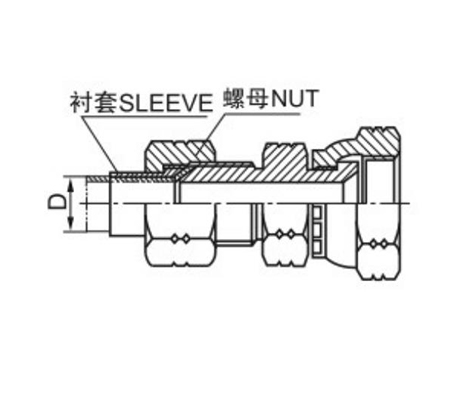

Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. |
|||||||||
