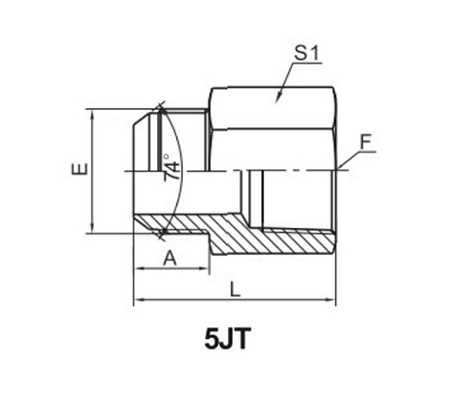

PART NO. |
THREAD |
|
DIMENSIONS |
||||||
|
E |
F |
|
|
A |
L |
S1 |
|
|
|
|
5JT-04-02 |
7/16"X20 |
Rc1/8"X28 |
|
|
14 |
30 |
14 |
|
|
|
5JT-04 |
7/16"X20 |
Rc1/4"X19 |
|
|
14 |
35 |
19 |
|
|
|
5JT-06-04 |
9/16"X18 |
Rc1/4"X19 |
|
|
14.5 |
35 |
19 |
|
|
|
5JT-06 |
9/16"X18 |
Rc3/8"X19 |
|
|
14.5 |
36 |
22 |
|
|
|
5JT-08-06 |
3/4"X16 |
Rc3/8"X19 |
|
|
17 |
40 |
22 |
|
|
|
5JT-08 |
3/4"X16 |
Rc1/2"X14 |
|
|
17 |
45 |
27 |
|
|
|
5JT-10-08 |
7/8"X14 |
Rc1/2"X14 |
|
|
19 |
48 |
27 |
|
|
|
5JT-12 |
1.1/16"X12 |
Rc3/4"X14 |
|
|
22 |
52 |
36 |
|
|
|
5JT-16 |
1.5/16"X12 |
Rc1"X11 |
|
|
23 |
60 |
41 |
|
|
|
Note: Nut and sleeve should be ordered separately.The nut NB200 and sleeve NB500 is suitable for metric tube,the nut NB200 and sleeve NB300 is suitable for inch tube. |
|||||||||
