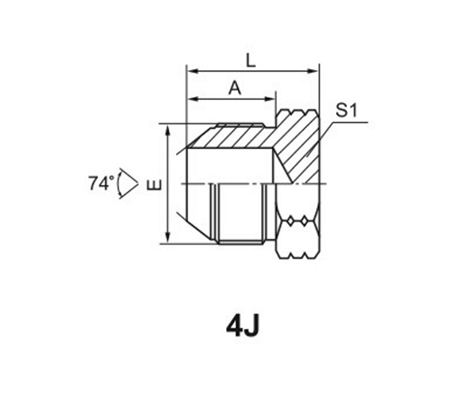

PART NO. |
THREAD |
|
DIMENSIONS |
||||||
|
E |
|
|
|
A |
L |
S1 |
|
|
|
|
4J-04 |
7/16"X20 |
|
|
|
14 |
20 |
12 |
|
|
|
4J-05 |
1/2"X20 |
|
|
|
14 |
20 |
14 |
|
|
|
4J-06 |
9/16"X18 |
|
|
|
14.1 |
20 |
17 |
|
|
|
4J-08 |
3/4"X16 |
|
|
|
16.7 |
25 |
22 |
|
|
|
4J-10 |
7/8"X14 |
|
|
|
19.3 |
27.5 |
24 |
|
|
|
4J-12 |
1.1/16"X12 |
|
|
|
21.9 |
32 |
30 |
|
|
|
4J-14 |
1.3/16"X12 |
|
|
|
22.6 |
33.5 |
32 |
|
|
|
4J-16 |
1.5/16"X12 |
|
|
|
23.1 |
34 |
36 |
|
|
|
4J-20 |
1.5/8"X12 |
|
|
|
24.3 |
38 |
46 |
|
|
|
4J-24 |
1.7/8"X12 |
|
|
|
27.5 |
44.5 |
50 |
|
|
|
4J-32 |
2.1/2"X12 |
|
|
|
33.9 |
51 |
65 |
|
|
|

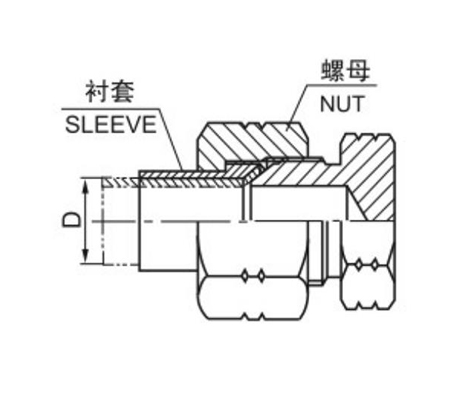

Note: Nut and sleeve should be ordered separately. The nut NB200 and sleeve NB500 is suitable for metric tube, the nut NB200 and sleeve NB300 is suitable for inch tube. |
|||||||||
