PART NO. |
THREAD |
TUBE O.D. |
O-RING |
DIMENSIONS |
|||||
|
E |
F |
F end |
A |
B |
S1 |
S2 |
S3 |
||
|
1QO9-16-06 |
M16X1.5 |
9/16”X18 |
10 |
O906 |
32 |
31.8 |
16 |
19 |
19 |
|
1QO9-18-08 |
M18X1.5 |
3/4 "X16 |
12 |
O908 |
34 |
36.8 |
19 |
24 |
22 |
|
1QO9-22-10 |
M22X1.5 |
7/8”X14 |
14 |
O910 |
37.5 |
44 |
22 |
27 |
27 |
|
1QO9-27-12 |
M27X1.5 |
1.1/16"X12 |
18 |
O912 |
41.5 |
51 |
27 |
32 |
32 |
|
1QO9-30-12 |
M30X1.5 |
1.1/16"X12 |
20 |
O912 |
45.8 |
53 |
30 |
32 |
36 |
|
1QO9-33-16 |
M33X2 |
1.5/16"X12 |
22 |
O916 |
51 |
54.5 |
33 |
41 |
38 |
|
1QO9-39-16 |
M39X2 |
1.5/16”X12 |
28 |
O916 |
55.5 |
59.5 |
41 |
41 |
46 |
|
1QO9-42-20 |
M42X2 |
1.5/8”X12 |
32 |
O920 |
58.5 |
59 |
41 |
50 |
50 |
|

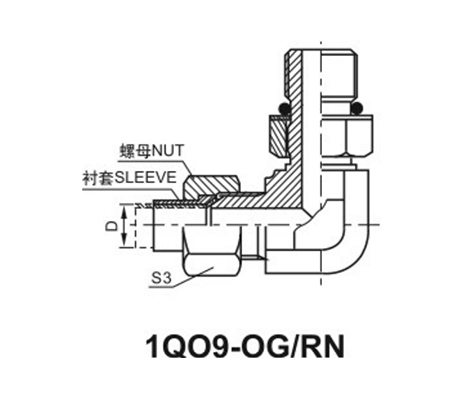

Note:1 In case if you are interested to order the adapter in complete set with sleeve and nut,it is necessary to insert suffix “RN” after our part NO.,for example 1Q09-22-1 OOG/RN,The sleeve NO. is NB500-Q and the nut No. is NB200-Q. 2 F end is connected with ISO 11926-1 port. |
|||||||||
