PART NO. |
THREAD |
TUBEO.D. |
DIMENSIONS |
||||||
|
E |
F |
D |
|
A |
C |
S1 |
S2 |
S3 |
|
|
2Q9-14 |
M14X1.5 |
M14X1.5 |
8 |
|
30.2 |
8.5 |
14 |
19 |
17 |
|
2Q9-16 |
M16X1.5 |
M16X1.5 |
10 |
|
32.5 |
8 |
16 |
22 |
19 |
|
2Q9-18 |
M18X1.5 |
M18X1.5 |
12 |
|
34 |
8 |
19 |
24 |
22 |
|
2Q9-22 |
M22X1.5 |
M22X1.5 |
14 |
|
37.5 |
10 |
22 |
27 |
27 |
|
2Q9-27 |
M27X1.5 |
M27X1.5 |
18 |
|
41.5 |
10 |
27 |
32 |
32 |
|
2Q9-30 |
M30X1.5 |
M30X1.5 |
20 |
|
45.8 |
11 |
30 |
36 |
36 |
|
2Q9-33 |
M33X2 |
M33X2 |
22 |
|
49.5 |
13 |
33 |
41 |
38 |
|
2Q9-36 |
M36X2 |
M36X2 |
25 |
|
51.5 |
13 |
36 |
41 |
41 |
|
2Q9-39 |
M39X2 |
M39X2 |
28 |
|
55.5 |
13 |
41 |
46 |
46 |
|
2Q9-45 |
M45X2 |
M45X2 |
34 |
|
62.5 |
15 |
48 |
55 |
55 |
|

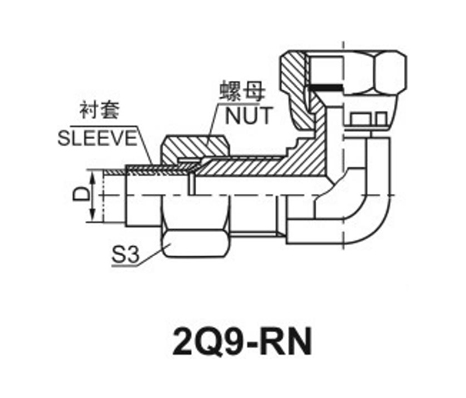

Note:ln case if you are interested to order the adapter in complete set with sleeve and nut,it is necessary to insert suffix “RN” after our part NO.,for example 2Q9-18RN，The sleeve NO.is NB500-Q and the nut No. is NB200-Q. |
|||||||||
