PART NO. |
THREAD |
TUBE O.D. |

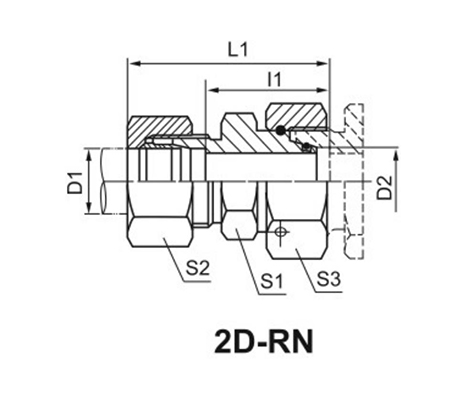

DIMENSIONS |
MPa |
|||||||
|
E |
F |
D1 |
D2 |
I1 |
L1 |
S1 |
S2 |
S3 |
|
||
|
2D-14-16 |
M14X1.5 |
M16X1.5 |
6 |
8 |
27 |
42 |
14 |
17 |
19 |
|
63 Heavy series S |
|
2D-14-18 |
M14X1.5 |
M18X1.5 |
6 |
10 |
27.5 |
42 |
17 |
17 |
22 |
|
|
|
2D-14-20 |
M14X1.5 |
M20X1.5 |
6 |
12 |
29 |
44 |
17 |
17 |
24 |
|
|
|
2D-14-22 |
M14X1.5 |
M22X1.5 |
6 |
14 |
31.5 |
46 |
19 |
17 |
27 |
|
|
|
2D-16-18 |
M16X1.5 |
M18X1.5 |
8 |
10 |
27.5 |
42 |
17 |
19 |
22 |
|
|
|
2D-16-20 |
M16X1.5 |
M20X1.5 |
8 |
12 |
29 |
44 |
17 |
19 |
24 |
|
|
|
2D-16-22 |
M16X1.5 |
M22X1.5 |
8 |
14 |
31.5 |
46 |
19 |
19 |
27 |
|
|
|
2D-18-20 |
M18X1.5 |
M20X1.5 |
10 |
12 |
31 |
46 |
19 |
22 |
24 |
|
|
|
2D-18-22 |
M18X1.5 |
M22X1.5 |
10 |
14 |
31 |
47 |
19 |
22 |
27 |
|
|
|
2D-20-22 |
M20X1.5 |
M22X1.5 |
12 |
14 |
31 |
47 |
22 |
24 |
27 |
|
|
|
2D-14-24 |
M14X1.5 |
M24X1.5 |
6 |
16 |
32 |
47 |
22 |
17 |
30 |
|
40 Heavy series S
|
|
2D-14-30 |
M14X1.5 |
M30X2 |
6 |
20 |
36 |
51 |
27 |
17 |
36 |
|
|
|
2D-14-36 |
M14X1.5 |
M36X2 |
6 |
25 |
38.5 |
53 |
36 |
17 |
46 |
|
|
|
2D-14-42 |
M14X1.5 |
M42X2 |
6 |
30 |
44 |
59 |
41 |
17 |
50 |
|
|
|
2D-16-24 |
M16X1.5 |
M24X1.5 |
8 |
16 |
32 |
47 |
22 |
19 |
30 |
|
|
|
2D-16-30 |
M16X1.5 |
M30X2 |
8 |
20 |
36 |
51 |
27 |
19 |
36 |
|
|
|
2D-16-36 |
M16X1.5 |
M36X2 |
8 |
25 |
38.5 |
53 |
36 |
19 |
46 |
|
|
|
2D-16-42 |
M16X1.5 |
M42X2 |
8 |
30 |
44 |
59 |
41 |
19 |
50 |
|
|
|
2D-18-24 |
M18X1.5 |
M24X1.5 |
10 |
16 |
31.5 |
48 |
22 |
22 |
30 |
|
|
|
2D-18-30 |
M18X1.5 |
M30X2 |
10 |
20 |
35.5 |
52 |
27 |
22 |
36 |
|
|
|
2D-18-36 |
M18X1.5 |
M36X2 |
10 |
25 |
38 |
54 |
36 |
22 |
46 |
|
|
|
2D-18-42 |
M18X1.5 |
M42X2 |
10 |
30 |
43.5 |
60 |
41 |
22 |
50 |
|
|
|
2D-20-24 |
M20X1.5 |
M24X1.5 |
12 |
16 |
33.5 |
50 |
22 |
24 |
30 |
|
|
|
2D-20-30 |
M20X1.5 |
M30X2 |
12 |
20 |
35.5 |
52 |
27 |
24 |
36 |
|
|
|
2D-20-36 |
M20X1.5 |
M36X2 |
12 |
25 |
38 |
54 |
36 |
24 |
46 |
|
|
|
2D-20-42 |
M20X1.5 |
M42X2 |
12 |
30 |
43.5 |
60 |
41 |
24 |
50 |
|
|
|
2D-22-24 |
M22X1.5 |
M24X1.5 |
14 |
16 |
33 |
51 |
24 |
27 |
30 |
|
|
|
2D-22-30 |
M22X1.5 |
M30X2 |
14 |
20 |
37 |
55 |
27 |
27 |
36 |
|
|
|
2D-22-36 |
M22X1.5 |
M36X2 |
14 |
25 |
39.5 |
57 |
36 |
27 |
46 |
|
|
|
2D-22-42 |
M22X1.5 |
M42X2 |
14 |
30 |
45 |
63 |
41 |
27 |
50 |
|
|
|
2D-24-30 |
M24X1.5 |
M30X2 |
16 |
20 |
37.5 |
55 |
30 |
30 |
36 |
|
|
|
2D-24-36 |
M24X1.5 |
M36X2 |
16 |
25 |
39 |
57 |
36 |
30 |
46 |
|
|
|
2D-24-42 |
M24X1.5 |
M42X2 |
16 |
30 |
44.5 |
63 |
41 |
30 |
50 |
|
|
|
2D-30-36 |
M30X2 |
M36X2 |
20 |
25 |
39 |
61 |
36 |
36 |
46 |
|
|
|
2D-30-42 |
M30X2 |
M42X2 |
20 |
30 |
44.5 |
66 |
41 |
36 |
50 |
|
|
|
2D-36-42 |
M36X2 |
M42X2 |
25 |
30 |
44 |
69 |
41 |
46 |
50 |
|
|
|
2D-14-52 |
M14X1.5 |
M52X2 |
6 |
38 |
47.5 |
62 |
50 |
17 |
60 |
|
31.5 Heavy series S
|
|
2D-16-52 |
M16X1.5 |
M52X2 |
8 |
38 |
47.5 |
62 |
50 |
19 |
60 |
|
|
|
2D-18-52 |
M18X1.5 |
M52X2 |
10 |
38 |
47 |
63 |
50 |
22 |
60 |
|
|
|
2D-20-52 |
M20X1.5 |
M52X2 |
12 |
38 |
47 |
63 |
50 |
24 |
60 |
|
|
|
2D-22-52 |
M22X1.5 |
M52X2 |
14 |
38 |
48.5 |
66 |
50 |
27 |
60 |
|
|
|
2D-24-52 |
M24X1.5 |
M52X2 |
16 |
38 |
48 |
66 |
50 |
30 |
60 |
|
|
|
2D-30-52 |
M30X2 |
M52X2 |
20 |
38 |
48 |
70 |
50 |
36 |
60 |
|
|
|
2D-36-52 |
M36X2 |
M52X2 |
25 |
38 |
48.5 |
73 |
50 |
46 |
60 |
|
|
|
2D-42-52 |
M42X2 |
M52X2 |
30 |
38 |
49 |
76 |
50 |
50 |
60 |
|
|
|
Note:ln case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert
suffix “RN” after our part NO.,for example 2D-30-52RN.
|
|||||||||||
