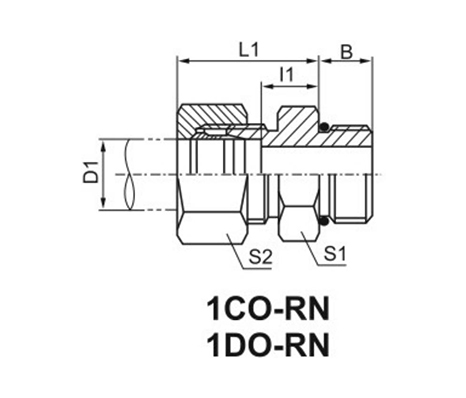

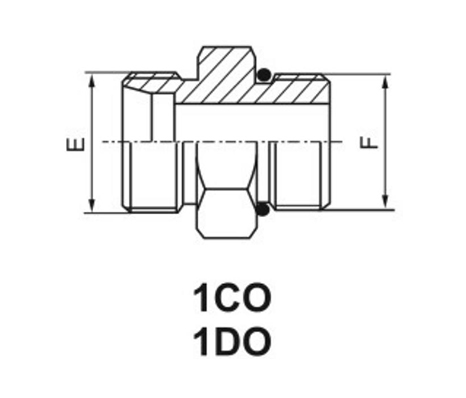

PART NO. |
THREAD |
TUBE O.D. |
DIMENSIONS |
MPa |
|||||||
|
E |
F |
D1 |
|
B |
I1 |
L1 |
S1 |
S2 |
|
||
|
1CO-14-04 |
M14X1.5 |
7/16"X20 |
8 |
|
9 |
10 |
25 |
17 |
17 |
|
31.5 Light series L |
|
1CO-16-04 |
M16X1.5 |
7/16"X20 |
10 |
|
9 |
11 |
26 |
17 |
19 |
|
|
|
1CO-18-06 |
M18X1.5 |
9/16"X18 |
12 |
|
10 |
11 |
26 |
19 |
22 |
|
|
|
1CO-18-08 |
M18X1.5 |
3/4"X16 |
12 |
|
11 |
13 |
28 |
24 |
22 |
|
|
|
1CO-18-10 |
M18X1.5 |
7/8"X14 |
12 |
|
12.7 |
14.3 |
29 |
27 |
22 |
|
|
|
1CO-22-08 |
M22X1.5 |
3/4"X16 |
15 |
|
11 |
14 |
29 |
24 |
27 |
|
|
|
1CO-22-10 |
M22X1.5 |
7/8"X14 |
15 |
|
12.7 |
15.3 |
30 |
27 |
27 |
|
|
|
1CO-22-12 |
M22X1.5 |
1.1/16"X12 |
15 |
|
15.09 |
11.91 |
30 |
32 |
27 |
|
|
|
1CO-26-08 |
M26X1.5 |
3/4"X16 |
18 |
|
11 |
14.5 |
31 |
27 |
32 |
|
|
|
1CO-26-10 |
M26X1.5 |
7/8"X14 |
18 |
|
12.7 |
14.8 |
31 |
27 |
32 |
|
|
|
1CO-30-08 |
M30X2 |
3/4"X16 |
18 |
|
11.13 |
13.87 |
33 |
32 |
36 |
|
16 Light series L |
|
1CO-30-10 |
M30X2 |
7/8"X14 |
22 |
|
12.7 |
16.8 |
33 |
32 |
36 |
|
|
|
1CO-30-12 |
M30X2 |
1.1/16"X12 |
22 |
|
15 |
16.5 |
33 |
32 |
36 |
|
|
|
1CO-30-16 |
M30X2 |
1.5/16"X12 |
22 |
|
15 |
17.5 |
34 |
41 |
36 |
|
|
|
1CO-36-12 |
M36X2 |
1.1/16"X12 |
28 |
|
15.09 |
14.41 |
34 |
41 |
41 |
|
|
|
1CO-36-16 |
M36X2 |
1.5/16"X12 |
28 |
|
15 |
17.5 |
34 |
41 |
41 |
|
|
|
1CO-45-16 |
M45X2 |
1.5/16"X12 |
35 |
|
15 |
17.5 |
39 |
46 |
50 |
|
|
|
1CO-45-20 |
M45X2 |
1.5/8"X12 |
35 |
|
15.09 |
16.41 |
39 |
50 |
50 |
|
|
|
1CO-52-20 |
M52X2 |
1.5/8"X12 |
42 |
|
15.09 |
15.91 |
42 |
55 |
60 |
|
|
|
1DO-16-04 |
M16X1.5 |
7/16"X20 |
8 |
|
9 |
15 |
30 |
17 |
19 |
|
63 Heavy series S |
|
1DO-18-06 |
M18X1.5 |
9/16"X18 |
10 |
|
10 |
14.5 |
31 |
19 |
22 |
|
|
|
1DO-20-06 |
M20X1.5 |
9/16"X18 |
12 |
|
10 |
14.5 |
31 |
22 |
24 |
|
|
|
1DO-20-08 |
M20X1.5 |
3/4"X16 |
12 |
|
11 |
17.5 |
34 |
24 |
24 |
|
|
|
1DO-24-08 |
M24X1.5 |
3/4"X16 |
16 |
|
11 |
15.5 |
34 |
24 |
30 |
|
40 Heavy series S |
|
1DO-24-10 |
M24X1.5 |
7/8"X14 |
16 |
|
12.7 |
18.8 |
37 |
27 |
30 |
|
|
|
1DO-30-08 |
M30X2 |
3/4"X16 |
20 |
|
11 |
20.5 |
42 |
32 |
36 |
|
|
|
1DO-30-10 |
M30X2 |
7/8"X14 |
20 |
|
12.7 |
20.8 |
42 |
32 |
36 |
|
|
|
1DO-30-12 |
M30X2 |
1.1/16"X12 |
20 |
|
15 |
20.5 |
42 |
32 |
36 |
|
|
|
1DO-36-12 |
M36X2 |
1.1/16"X12 |
25 |
|
15.09 |
19.91 |
47 |
41 |
46 |
|
|
|
1DO-36-16 |
M36X2 |
1.5/16"X12 |
25 |
|
15 |
23 |
47 |
41 |
46 |
|
|
|
1DO-42-16 |
M42X2 |
1.5/16"X12 |
30 |
|
15 |
23.5 |
50 |
46 |
50 |
|
|
|
1DO-42-20 |
M42X2 |
1.5/8"X12 |
30 |
|
15 |
23.5 |
50 |
50 |
50 |
|
|
|
1DO-52-20 |
M52X2 |
1.5/8"X12 |
38 |
|
15.09 |
22.9 |
53.9 |
55 |
50 |
|
31.5Heavy seriesS |
|
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut.it is necessary to insert
suffix “RN” after our part NO.,for example 1 DO-30-12RN.
|
|||||||||||
