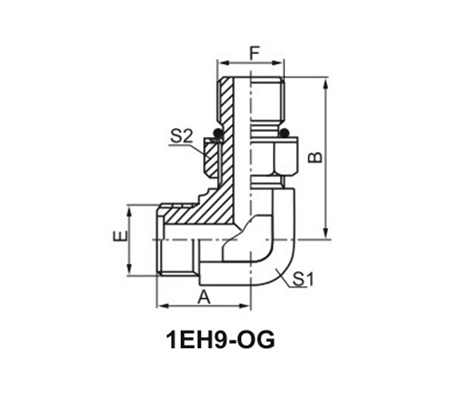

PART NO. |
THREAD |
O-RING |
DIMENSIONS |
||||||
|
E |
F |
E |
F |
A |
B |
S1 |
S2 |
|
|
|
1EH9-12-10OG |
M12X1.25 |
M10X1 |
8X1.9 |
O08.1X1.6 |
20.5 |
28.5 |
12 |
14 |
|
|
1EH9-14-120G |
M14X1.5 |
M12X1.5 |
10X1.9 |
O09.3X2.4 |
22.5 |
33.2 |
14 |
17 |
|
|
1EH9-16-140G |
M16X1.5 |
M14X1.5 |
11X1.9 |
O11.3X2.4 |
24 |
36 |
17 |
19 |
|
|
1EH9-18-160G |
M18X1.5 |
M16X1.5 |
13X1.9 |
O13.3X2.4 |
26 |
39 |
19 |
22 |
|
|
1EH9-22-180G |
M22X1.5 |
M18X1.5 |
16X2.4 |
O15.3X2.4 |
29 |
44 |
22 |
24 |
|
|
1EH9-27-220G |
M27X1.5 |
M22X1.5 |
20X2.4 |
O19.3X2.4 |
32.5 |
48 |
27 |
27 |
|
|
1EH9-30-27OG |
M30X1.5 |
M27X2 |
24X2.4 |
O23.5X3.0 |
35.5 |
57 |
30 |
32 |
|
|
1EH9-36-330G |
M36X2 |
M33X2 |
30X3.1 |
O29.5X3.0 |
42 |
60.5 |
36 |
41 |
|
|
1EH9-39-330G |
M39X2 |
M33X2 |
32X3.1 |
O29.5X3.0 |
47.5 |
64 |
41 |
41 |
|
|
1EH9-42-420G |
M42X2 |
M42X2 |
35X3.1 |
O38.5X3.0 |
49.5 |
65 |
41 |
50 |
|
|
1EH9-45-420G |
M45X2 |
M42X2 |
38X3.1 |
O38.5X3.0 |
52.5 |
67.5 |
46 |
50 |
|
|
1EH9-52-480G |
M52X2 |
M48X2 |
40X3.1 |
O44.5X3.0 |
57 |
73.5 |
50 |
55 |
|
|
Note:1 The parameters of E end O-ring are ring outside diameter and ring width. 2 F end is fit for ISO 6149-1 port. |
|||||||||
