PART NO. |
THREAD |
|
DIMENSIONS |
||||||
|

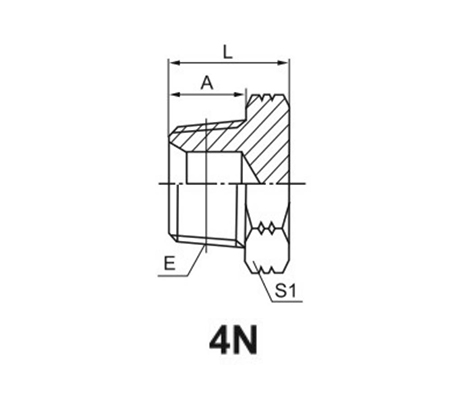

E |
|
|
|
A |
L |
S1 |
|
|
|
|
4N-02 |
Z1/8"X27 |
|
|
|
10.5 |
16 |
12 |
|
|
|
4N-04 |
Z1/4"X18 |
|
|
|
15 |
20 |
17 |
|
|
|
4N-06 |
Z3/8"X18 |
|
|
|
16 |
21 |
19 |
|
|
|
4N-08 |
Z1/2"X14 |
|
|
|
19.5 |
27 |
22 |
|
|
|
4N-12 |
Z3/4"X14 |
|
|
|
19.5 |
29.5 |
27 |
|
|
|
4N-16 |
Z1"X11.5 |
|
|
|
25.5 |
36.5 |
36 |
|
|
|
4N-20 |
Z1.1/4"X11.5 |
|
|
|
26.5 |
38.5 |
46 |
|
|
|
4N-24 |
Z1.1/2"X11.5 |
|
|
|
27.5 |
43 |
50 |
|
|
|
4N-32 |
Z2"X11.5 |
|
|
|
27.5 |
43.5 |
65 |
|
|
