45° ELBOW ORFS MALE O-RING/ORFS FEMALE

Home / Specification / Hydraulic Adapter / ORFS Fittings / 45° ELBOW ORFS MALE O-RING/ORFS FEMALE

How Can We Help You?

+86-13805809210 Contact Us

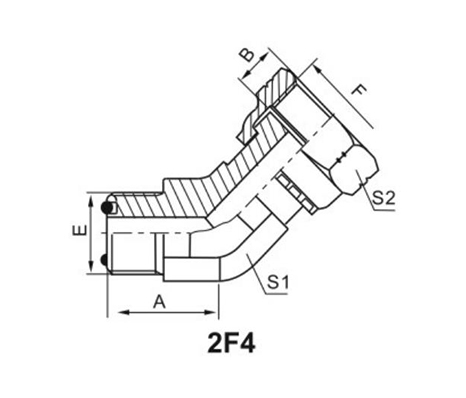

45° ELBOW ORFS MALE O-RING/ORFS FEMALE

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD

     O-RING

    DIMENSIONS

    E

    F

    E



    A

    B

    S1

    S2



    2F4-04

    9/16"X18

    9/16"X18

    0011



    18.3

    8.5

    14

    19



    2F4-06

    11/16"X16

    11/16"X16

    0012



    20.5

    10

    19

    22



    2F4-08

    13/16"X16

    13/16"X16

    0014



    24

    11

    22

    27



    2F4-10

    1"X14

    1"X14

    0016



    28

    15

    27

    30



    2F4-12

    1.3/16"X12

    1.3/16"X12

    0018



    30.7

    15

    30

    36



    2F4-16

    1.7/16"X12

    1.7/16"X12

    0021



    33

    15

    36

    41



    2F4-20

    1.11/16"X12

    1.11/16"X12

    0025



    35.5

    15

    41

    50
