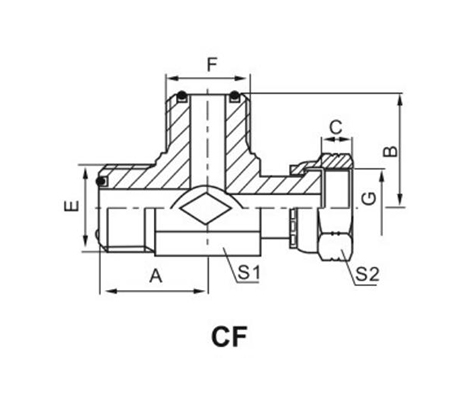

ORFS MALE O-RING/ORFS FEMALE RUN TEE

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD

    O-RING

    DIMENSIONS

    E

    F

    G

    E

    F

    A

    B

    C

    S1

    S2

    CF-04

    9/16"X18

    9/16"X18

    9/16"X18

    O011

    O011

    23

    23

    8.5

    14

    19

    CF-06

    11/16"X16

    11/16"X16

    11/16”X16

    O012

    O012

    27.5

    27.5

    10

    19

    22

    CF-08

    13/16"X16

    13/16”X16

    13/16"X16

    O014

    O014

    31

    31

    11

    22

    27

    CF-10

    1"X14

    1"X14

    1"X14

    O016

    O016

    36.5

    36.5

    13.5

    27

    30

    CF-12

    1.3/16"X12

    1.3/16"X12

    1.3/16"X12

    O018

    O018

    40.3

    40.3

    15

    30

    36

    CF-16

    1.7/16"X12

    1.7/16"X12

    1.7/16"X12

    O021

    O021

    44.5

    44.5

    15

    36

    41

    CF-20

    1.11/16"X12

    1.11/16"X12

    1.11/16"X12

    O025

    O025

    47.5

    47.5

    15

    41

    50

    CF-24

    2"X12

    2"X12

    2"X12

    O029

    O029

    53.5

    53.5

    15

    50

    60
