ORFS MALE O-RING/ORFS FEMALE

Home / Specification / Hydraulic Adapter / ORFS Fittings / ORFS MALE O-RING/ORFS FEMALE

How Can We Help You?

+86-13805809210 Contact Us

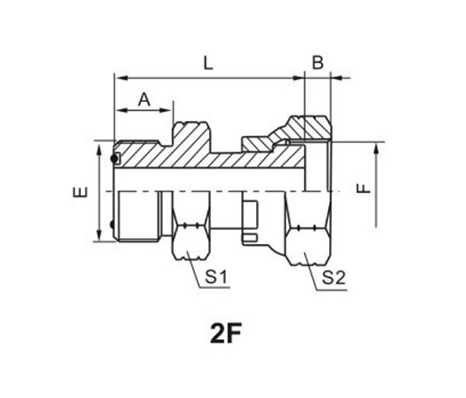

ORFS MALE O-RING/ORFS FEMALE

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD

    O-RING

    DIMENSIONS

    E

    F

    E



    A

    B

    L

    S1

    S2

    2F-04

    9/16"X18

    9/16"X18

    0011



    9.8

    8.5

    33

    17

    19

    2F-04-06

    9/16"X18

    11/16"X16

    0011



    9.8

    10

    34.5

    17

    22

    2F-04-08

    9/16"X18

    13/16"X16

    0011



    9.8

    11

    36.5

    19

    27

    2F-06-04

    11/16”X16

    9/16"X18

    0012



    11.2

    8.5

    35.5

    19

    19

    2F-06

    11/16"X16

    11/16"X16

    0012



    11.2

    10

    38.5

    19

    22

    2F-06-08

    11/16"X16

    13/16"X16

    0012



    11.2

    11

    37.7

    19

    27

    2F-06-10

    11/16"X16

    1"X14

    0012



    11.2

    13.5

    43.7

    24

    30

    2F-08-06

    13/16"X16

    11/16"X16

    0014



    13

    10

    41

    22

    22

    2F-08

    13/16”X16

    13/16"X16

    0014



    13

    11

    43

    22

    27

    2F-08-10

    13/16"X16

    1"X4

    0014



    13

    13.5

    45.5

    24

    30

    2F-08-12

    13/16"X16

    1.3/16"X12

    0014



    13

    15

    49

    30

    36

    2F-10-08

    1"X14

    13/16"X16

    0016



    15.5

    11

    47.5

    27

    27

    2F-10

    1"X14

    1"X14

    0016



    15.5

    13.5

    51.5

    27

    30

    2F-10-12

    1"X14

    1.3/16"X12

    0016



    15.5

    15

    51.5

    30

    36

    2F-10-16

    1"X14

    1.7/16"X12

    0016



    15.5

    15

    56

    36

    41

    2F-12-08

    1.3/16"X12

    13/16”X16

    0018



    17

    11

    50.5

    32

    27

    2F-12-10

    1.3/16"X12

    1"X14

    0018



    17

    13.5

    54.5

    32

    30

    2F-12

    1.3/16"X12

    1.3/16"X12

    0018



    17

    15

    56

    32

    36

    2F-12-16

    1.3/16"X12

    1.7/16"X12

    0018



    17

    15

    58

    36

    41

    2F-16-12

    1.7/16"X12

    1.3/16"X12

    0021



    17.5

    15

    58

    38

    36

    2F-16

    1.7/16"X12

    1.7/16"X12

    0021



    17.5

    15

    60

    38

    41

    2F-16-20

    1.7/16"X12

    1.11/16"X12

    0021



    17.5

    15

    62

    41

    50

    2F-20-16

    1.11/16"X12

    1.7/16"X12

    0025



    17.5

    15

    58.5

    46

    41

    2F-20

    1.11/16"X12

    1.11/16"X12

    0025



    17.5

    15

    62

    46

    50

    2F-20-24

    1.11/16"X12

    2"X12

    0025



    17.5

    16

    65.5

    50

    60

    2F-24-20

    2"X12

    1.11/16"X12

    0029



    17.5

    15

    64

    55

    50

    2F-24

    2"X12

    2"X12

    0029



    17.5

    16

    64

    55

    60
