ORFS MALE O-RING PLUG

+86-13967892895 Contact Us
  • Description
  • Additional Information

  • PART NO.

    THREAD

    O-RING

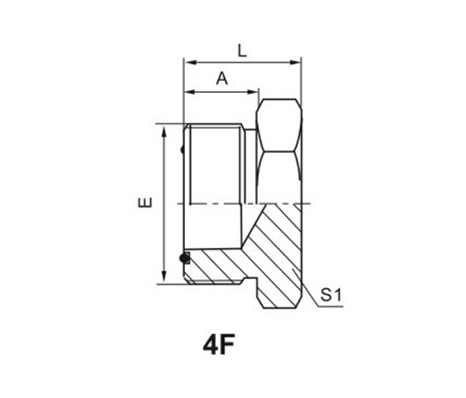

    DIMENSIONS

    E



    E



    A

    L

    S1





    4F-04

    9/16"X18



    O011



    9.8

    16.8

    17





    4F-06

    11/16"X16



    O012



    11.2

    19.2

    19





    4F-08

    13/16"X16



    O014



    12.8

    21.8

    22





    4F-10

    1"X14



    O016



    15.5

    25.9

    27





    4F-12

    1.3/16"X12



    O018



    17

    27.4

    32





    4F-16

    1.7/16"X12



    O021



    17.5

    27.9

    38





    4F-20

    1.11/16"X12



    O025



    17.5

    27.9

    46





    4F-24

    2"X12



    O029



    17.5

    27.9

    55
